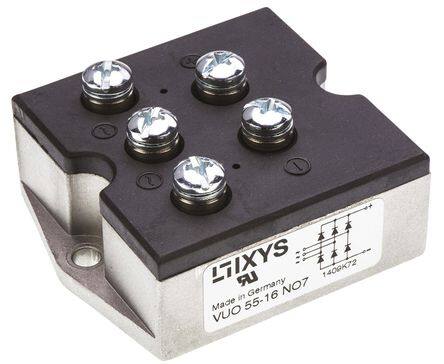

VUO55-16NO7
RoHS
RoHS compliant
RoHS compliantPackage PWS-B
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
Bridge rectifier, 3-phase 1600 V 58 A, VUO55-16NO7, Ixys
PDF
/
Buying Options
Total Price: USD $89.97
Unit Price: USD $89.971724
≥1 USD $89.971724
≥200 USD $35.899938
≥500 USD $34.699947
≥1000 USD $34.107829
Inventory: 1480
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Package / Case PWS-B
Number of Pins 5
Diode Element Material SILICON
Technical
Operating Temperature -40°C~150°C TJ
Packaging Bulk
Published 2000
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Additional Feature UL RECOGNIZED
Subcategory Bridge Rectifier Diodes
Technology Standard
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number VUO55
Qualification Status Not Qualified
Number of Elements 1
Element Configuration Single
Diode Type Three Phase
Current - Reverse Leakage @ Vr 100μA @ 1600V
Power Dissipation 46W
Voltage - Forward (Vf) (Max) @ If 1.03V @ 20A
Case Connection ISOLATED
Forward Current 58A
Max Reverse Leakage Current 1.5mA
Max Surge Current 750A
Forward Voltage 1.6V
Average Rectified Current 58A
Number of Phases 3
Peak Reverse Current 300μA
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
Peak Non-Repetitive Surge Current 820A
Max Forward Surge Current (Ifsm) 820A
Dimensions
Height 26mm
Length 72mm
Width 60mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
