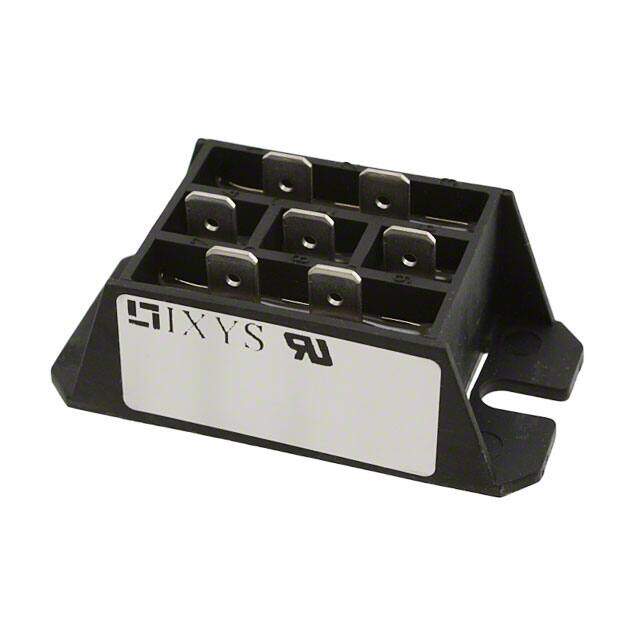

VUO50-12NO3
RoHS
RoHS compliant
RoHS compliantPackage FO-F-B
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
RECT BRIDGE 3PH 58A 1200V FO-F-B
PDF
/
Buying Options
Total Price: USD $190.47
Unit Price: USD $190.4712
≥1 USD $190.4712
≥10 USD $170.76725
Inventory: 902
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 31.6mm
Length 63mm
Height 21mm
Technical
Peak Non-Repetitive Surge Current 525A
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Peak Reverse Current 300μA
Number of Phases 3
Average Rectified Current 58A
Forward Voltage 1.9V
Breakdown Voltage 1.2kV
Max Surge Current 500A
Max Reverse Leakage Current 300μA
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.9V @ 150A
Current - Reverse Leakage @ Vr 300μA @ 1200V
Diode Type Three Phase
Configuration BRIDGE, 6 ELEMENTS
Number of Elements 1
Qualification Status Not Qualified
Pin Count 7
Base Part Number VUO50
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form SOLDER LUG
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Terminal Finish Nickel (Ni)
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2000
Packaging Bulk
Operating Temperature -40°C~125°C TJ
Physical
Diode Element Material SILICON
Number of Pins 5
Package / Case FO-F-B
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Supply Chain
Factory Lead Time 20 Weeks
