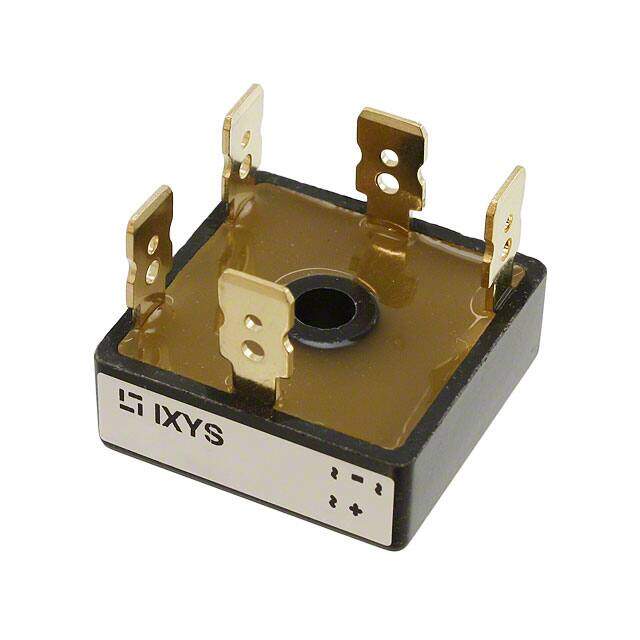

VUO36-16NO8
RoHS
RoHS compliant
RoHS compliantPackage 5-Square, FO-B
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
VUO36 Series 27 A 1600 V Quick Connect Three Phase Rectifier Bridge
PDF
/
Buying Options
Total Price: USD $13.42
Unit Price: USD $13.42445
≥1 USD $13.42445
≥10 USD $11.01525
≥100 USD $10.6704
≥500 USD $10.3265
≥1000 USD $9.9826
≥3000 USD $8.94995
Inventory: 704
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 28.5mm
Length 28.5mm
Height 10mm
Technical
Max Forward Surge Current (Ifsm) 550A
Peak Non-Repetitive Surge Current 600A
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
Peak Reverse Current 300μA
Number of Phases 3
Forward Voltage 1.7V
Current - Average Rectified (Io) 27A
Max Surge Current 550A
Max Reverse Leakage Current 1.5mA
Forward Current 35A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.04V @ 15A
Power Dissipation 17W
Current - Reverse Leakage @ Vr 40μA @ 1600V
Diode Type Three Phase
Element Configuration Single
Number of Elements 1
Base Part Number VUO36
Terminal Form SOLDER LUG
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Published 2008
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 5
Package / Case 5-Square, FO-B
Mounting Type QC Terminal
Mount Screw
Supply Chain
Factory Lead Time 16 Weeks
