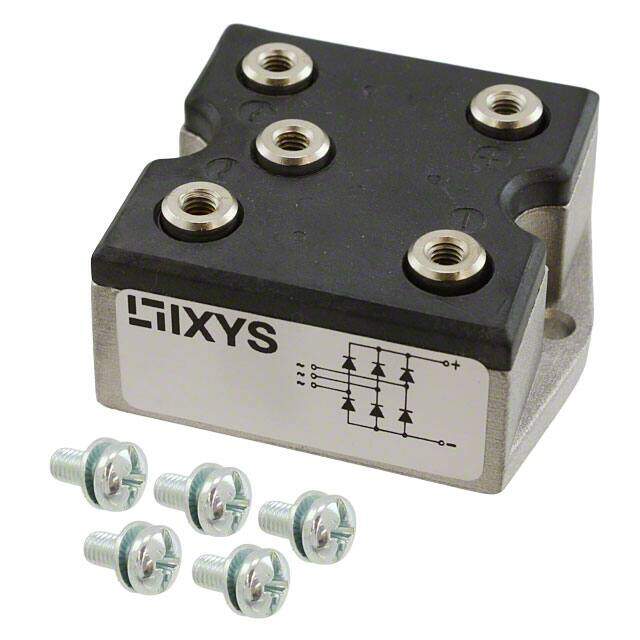

VUO35-18NO7
RoHS
RoHS compliant
RoHS compliantPackage PWS-A
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
RECT BRIDGE 3PH 38A 1800V PWS-A
PDF
/
Buying Options
Total Price: USD $52.54
Unit Price: USD $52.539632
≥1 USD $52.539632
≥200 USD $20.964387
≥500 USD $20.263299
≥1000 USD $19.918006
Inventory: 7252
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 45mm
Length 45mm
Height 22mm
Technical
Voltage - Peak Reverse (Max) 1.8kV
Peak Non-Repetitive Surge Current 440A
Number of Phases 3
Forward Voltage 2.2V
Current - Average Rectified (Io) 38A
Output Current-Max 38A
Max Surge Current 400A
Max Reverse Leakage Current 300μA
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.1V @ 15A
Current - Reverse Leakage @ Vr 40μA @ 1800V
Diode Type Three Phase
Configuration BRIDGE, 6 ELEMENTS
Number of Elements 1
Qualification Status Not Qualified
Pin Count 5
Base Part Number VUO35
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2012
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 5
Package / Case PWS-A
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Supply Chain
Factory Lead Time 16 Weeks
