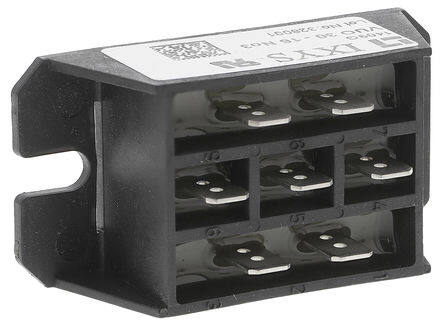

VUO30-16NO3
RoHS
RoHS compliant
RoHS compliantPackage FO-F-B
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
Diode Rectifier Bridge Single 1.6KV 50A 5-Pin FO-F-B
PDF
/
Buying Options
Total Price: USD $41.11
Unit Price: USD $41.109525
≥1 USD $41.109525
≥200 USD $16.403373
≥500 USD $15.85458
≥1000 USD $15.584123
Inventory: 5081
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 31.6mm
Length 63mm
Height 21mm
Technical
Max Forward Surge Current (Ifsm) 330A
Peak Non-Repetitive Surge Current 330A
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
Peak Reverse Current 300μA
Number of Phases 3
Average Rectified Current 37A
Forward Voltage 2.55V
Max Surge Current 300A
Max Reverse Leakage Current 1.5mA
Forward Current 45A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 2.55V @ 150A
Power Dissipation 60W
Current - Reverse Leakage @ Vr 300μA @ 1600V
Diode Type Three Phase
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
Pin Count 7
Base Part Number VUO30
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form SOLDER LUG
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Terminal Finish Nickel (Ni)
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2008
Packaging Bulk
Operating Temperature -40°C~125°C TJ
Physical
Diode Element Material SILICON
Number of Pins 5
Package / Case FO-F-B
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 20 Weeks
