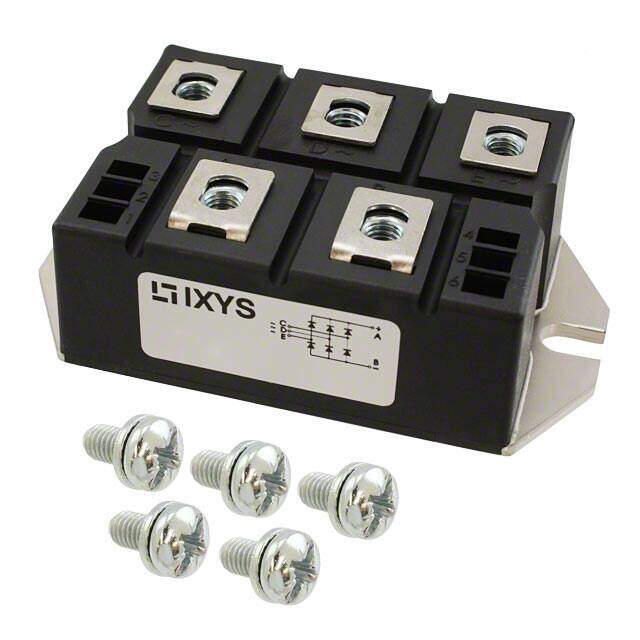

VUO110-16NO7
RoHS
RoHS compliant
RoHS compliantPackage PWS-E1
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 3P 1.6KV 127A PWS-E1
PDF
/
Buying Options
Total Price: USD $377.67
Unit Price: USD $377.66965
≥1 USD $377.66965
Inventory: 304
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 54mm
Length 94mm
Height 30mm
Technical
Max Forward Surge Current (Ifsm) 1.3kA
Peak Non-Repetitive Surge Current 1.3kA
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
Peak Reverse Current 300μA
Number of Phases 3
Forward Voltage 1.9V
Current - Average Rectified (Io) 127A
Max Surge Current 1.2kA
Max Reverse Leakage Current 2mA
Forward Current 125A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.13V @ 50A
Power Dissipation 175W
Current - Reverse Leakage @ Vr 100μA @ 1600V
Diode Type Three Phase
Element Configuration Single
Number of Elements 1
Pin Count 5
Base Part Number VUO110
Terminal Form UNSPECIFIED
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2012
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 5
Package / Case PWS-E1
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 16 Weeks
