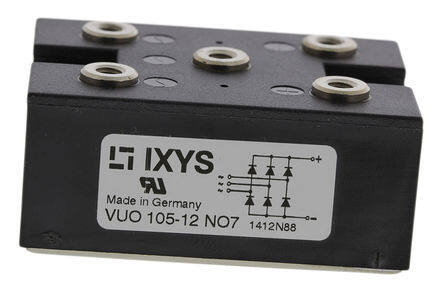

VUO105-12NO7
RoHS
RoHS compliant
RoHS compliantPackage PWS-C
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
IXYS SEMICONDUCTOR VUO105-12NO7 Bridge Rectifier Diode, Three, 1.2 kV, 140 A, Module, 1.6 V, 5 Pins
PDF
/
Buying Options
Total Price: USD $121.08
Unit Price: USD $121.08089
≥1 USD $121.08089
≥200 USD $48.312094
≥500 USD $46.69854
≥1000 USD $45.900297
Inventory: 1468
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 67mm
Length 67mm
Height 31mm
Technical
Max Forward Surge Current (Ifsm) 1.2kA
Peak Non-Repetitive Surge Current 1.65kA
Hole Diameter 5.5 mm
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Peak Reverse Current 300μA
Number of Phases 3
Average Rectified Current 140A
Forward Voltage 1.6V
Max Surge Current 1.5kA
Max Reverse Leakage Current 2mA
Forward Current 140A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.09V @ 40A
Output Current 140A
Power Dissipation 155W
Current - Reverse Leakage @ Vr 100μA @ 1200V
Diode Type Three Phase
Element Configuration Single
Number of Elements 1
Max Output Current 127A
Qualification Status Not Qualified
Voltage - Rated AC 400V
Base Part Number VUO105
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Current Rating 140A
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
Technology Standard
Voltage - Rated DC 1.2kV
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Number of Terminations 5
Part Status Active
Pbfree Code yes
Published 2000
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 5
Package / Case PWS-C
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 16 Weeks
