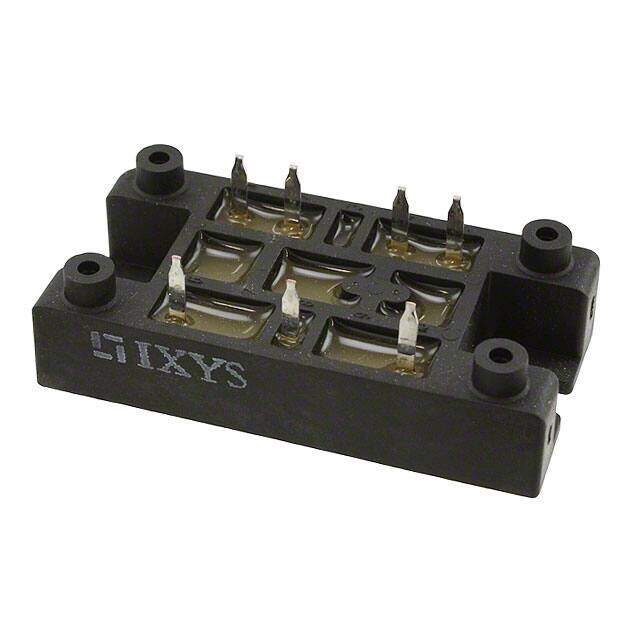

VUB72-16NO1
RoHS
/
Package V1-A
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 3P 1.6KV 110A V1-A
PDF
/
Buying Options
Total Price: USD $56.43
Unit Price: USD $56.43272
≥1 USD $56.43272
≥10 USD $53.23842
≥100 USD $50.22492
≥500 USD $47.382
≥1000 USD $44.7
≥3000 USD $42.16981
Inventory: 3334
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 31.6mm
Length 63mm
Height 17mm
Technical
Turn Off Time-Nom (toff) 490 ns
Collector Current-Max (IC) 50A
Turn On Time 130 ns
Peak Non-Repetitive Surge Current 530A
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
Peak Reverse Current 20μA
Average Rectified Current 110A
Polarity/Channel Type N-CHANNEL
Forward Voltage 1.1V
Transistor Application POWER CONTROL
Max Surge Current 530A
Max Reverse Leakage Current 20μA
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.1V @ 25A
Current - Reverse Leakage @ Vr 20μA @ 1600V
Diode Type Three Phase (Braking)
Configuration SINGLE WITH BUILT-IN DIODE, THREE PHASE DIODE BRIDGE AND THERMISTOR
Number of Elements 1
Qualification Status Not Qualified
Base Part Number VUB
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
Technology Standard
Additional Feature HIGH RELIABILITY
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e1
Published 2003
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 8
Package / Case V1-A
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Supply Chain
Factory Lead Time 8 Weeks
