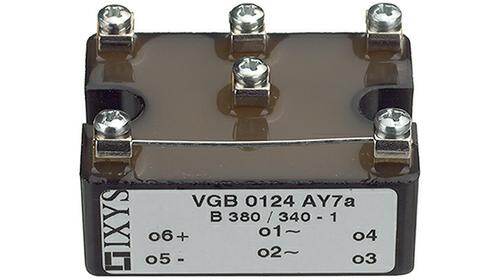

VGB0124AY7A
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
Bridge Rectifiers BRAKING RECTIFIER 1400V 1A
PDF
/
Buying Options
Total Price: USD $102.3
Unit Price: USD $102.3
≥1 USD $102.3
≥10 USD $93.38912
≥100 USD $84.479384
Inventory: 75
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 25mm
Length 46mm
Height 24.5mm
Technical
Voltage - Peak Reverse (Max) 1.4kV
Forward Voltage-Max 1.2V
Number of Phases 1
Average Rectified Current 1A
Output Current-Max 1A
Max Surge Current 60A
Diode Type Single Phase (Braking)
Configuration BRIDGE, 4 ELEMENTS
Number of Elements 4
Operating Temperature (Max) 150°C
Qualification Status Not Qualified
JESD-30 Code R-XUFM-X6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
Technology Standard
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2000
Packaging Bulk
Physical
Diode Element Material SILICON
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount
