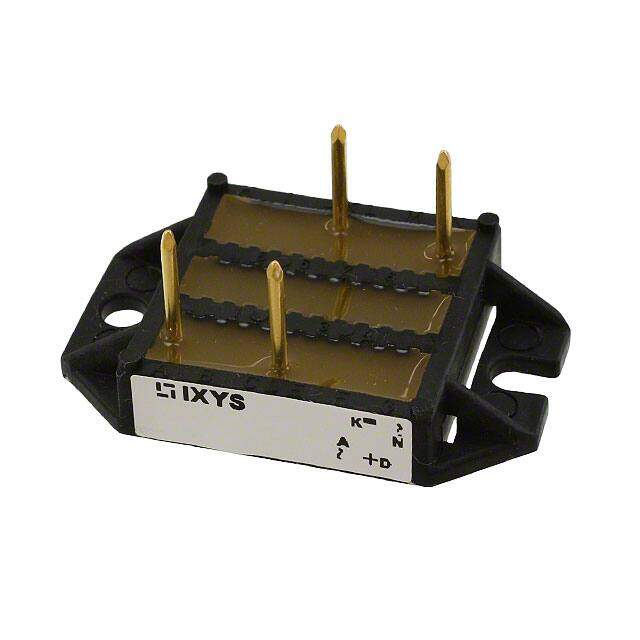

VBO68-16NO7
RoHS
RoHS compliant
RoHS compliantPackage ECO-PAC1
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 1P 1.6KV 68A ECOPAC1
PDF
/
Buying Options
Total Price: USD $12.08
Unit Price: USD $12.083932
≥1 USD $12.083932
≥200 USD $4.67655
≥500 USD $4.512437
≥1000 USD $4.431038
Inventory: 1576
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 30.3mm
Length 47mm
Height 9mm
Technical
Non-rep Pk Forward Current-Max 530A
Peak Non-Repetitive Surge Current 595A
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
Peak Reverse Current 40μA
Number of Phases 1
Average Rectified Current 70A
Forward Voltage 1.5V
Current - Average Rectified (Io) 68A
Output Current-Max 68A
Max Surge Current 550A
Max Reverse Leakage Current 1.5mA
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.14V @ 30A
Power Dissipation 135W
Current - Reverse Leakage @ Vr 40μA @ 1600V
Diode Type Single Phase
Number of Elements 1
Qualification Status Not Qualified
Pin Count 4
Base Part Number VBO68
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2010
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 4
Package / Case ECO-PAC1
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Supply Chain
Factory Lead Time 16 Weeks
