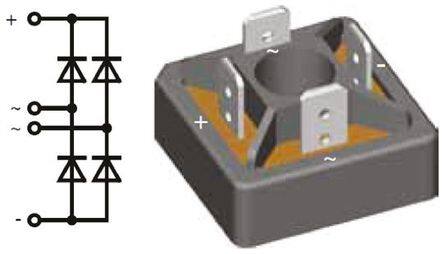

VBO25-08NO2
RoHS
RoHS compliant
RoHS compliantPackage 4-Square, FO-A
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
Diode Rectifier Bridge Single 800V 38A 4-Pin FO-A
PDF
/
Inventory: 2175
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Screw
Mounting Type QC Terminal
Package / Case 4-Square, FO-A
Number of Pins 4
Diode Element Material SILICON
Technical
Operating Temperature -40°C~150°C TJ
Packaging Bulk
Published 2010
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Finish Nickel (Ni)
Additional Feature UL RECOGNIZED
Subcategory Bridge Rectifier Diodes
Technology Standard
Terminal Position UPPER
Terminal Form SOLDER LUG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Qualification Status Not Qualified
Number of Elements 1
Element Configuration Single
Diode Type Single Phase
Current - Reverse Leakage @ Vr 300μA @ 800V
Voltage - Forward (Vf) (Max) @ If 1.36V @ 55A
Case Connection ISOLATED
Forward Current 38A
Max Reverse Leakage Current 300μA
Max Surge Current 370A
Forward Voltage 1.36V
Average Rectified Current 38A
Number of Phases 1
Peak Reverse Current 5mA
Max Repetitive Reverse Voltage (Vrrm) 800V
Peak Non-Repetitive Surge Current 390A
Max Forward Surge Current (Ifsm) 390A
Dimensions
Height 14.5mm
Length 28.9mm
Width 28.9mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
