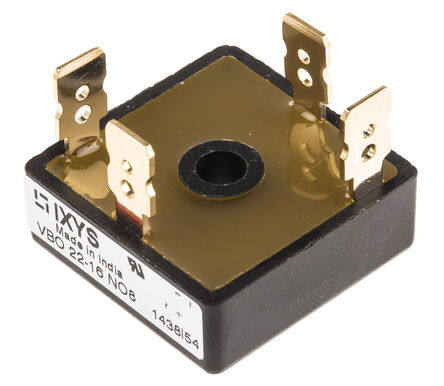

VBO22-16NO8
RoHS
RoHS compliant
RoHS compliantPackage 4-Square, FO-B
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
Diode Rectifier Bridge Single 1.6KV 17A 4-Pin FO-B-B
PDF
/
Buying Options
Total Price: USD $12.22
Unit Price: USD $12.2232
≥1 USD $12.2232
≥10 USD $10.76768
≥100 USD $9.312512
≥500 USD $8.439446
≥1000 USD $7.741008
Inventory: 79
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 28.5mm
Length 28.5mm
Height 10mm
Technical
Max Forward Surge Current (Ifsm) 440A
Peak Non-Repetitive Surge Current 440A
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
Peak Reverse Current 300μA
Number of Phases 1
Forward Voltage 2.2V
Current - Average Rectified (Io) 21A
Max Surge Current 380A
Max Reverse Leakage Current 300μA
Forward Current 14A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 2.2V @ 150A
Current - Reverse Leakage @ Vr 300μA @ 1600V
Diode Type Single Phase
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
Pin Count 4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form SOLDER LUG
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2008
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 4
Package / Case 4-Square, FO-B
Mounting Type QC Terminal
Mount Screw
Supply Chain
Factory Lead Time 16 Weeks
