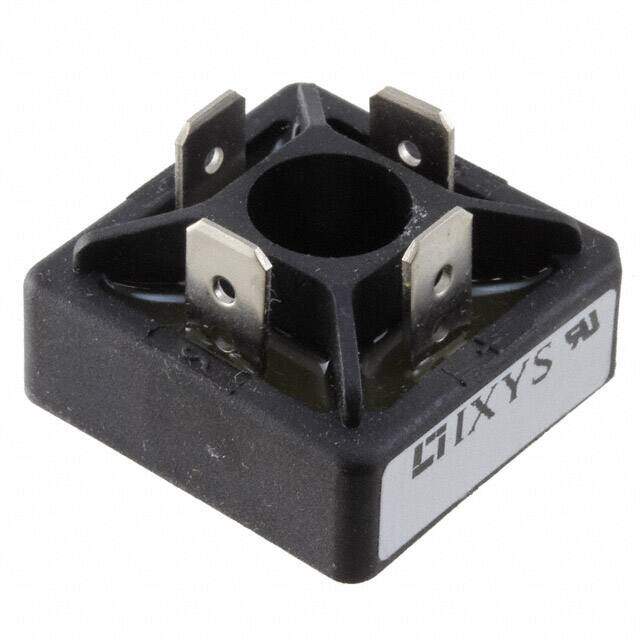

VBO13-12AO2
RoHS
RoHS compliant
RoHS compliantPackage 4-Square, FO-A
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
Diode Rectifier Bridge Single 1.2KV 18A 4-Pin FO-A
PDF
/
Inventory: 7146
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 28.9mm
Length 28.9mm
Height 14.5mm
Technical
Voltage - Peak Reverse (Max) 1.2kV
Peak Non-Repetitive Surge Current 230A
Number of Phases 1
Forward Voltage 1.8V
Current - Average Rectified (Io) 18A
Max Surge Current 220A
Max Reverse Leakage Current 300μA
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.8V @ 55A
Current - Reverse Leakage @ Vr 300μA @ 1200V
Diode Type Single Phase
Number of Elements 1
Qualification Status Not Qualified
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form SOLDER LUG
Terminal Position UPPER
Technology Avalanche
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Terminal Finish Nickel (Ni)
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2010
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 4
Package / Case 4-Square, FO-A
Mounting Type QC Terminal
Mount Screw
Supply Chain
Factory Lead Time 20 Weeks
