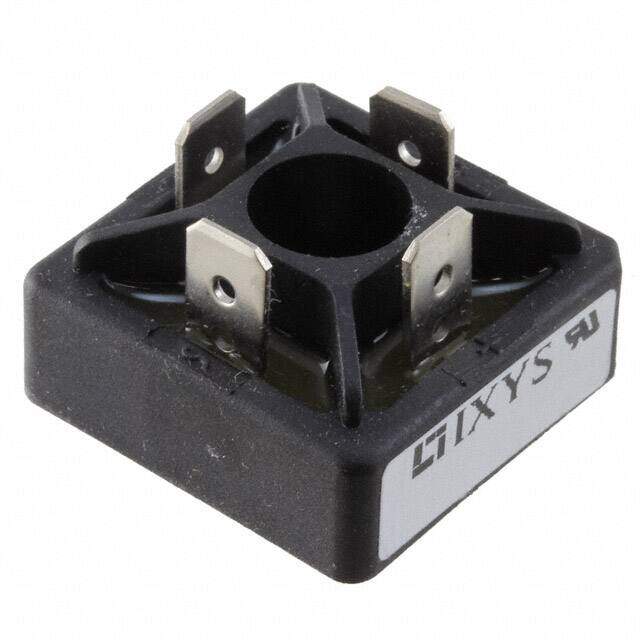

VBO13-08NO2
RoHS
RoHS compliant
RoHS compliantPackage 4-Square, FO-A
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 1PHASE 800V 18A FO-A
PDF
/
Inventory: 3642
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 28.9mm
Length 28.9mm
Height 14.5mm
Technical
Peak Non-Repetitive Surge Current 230A
Number of Phases 1
Forward Voltage 1.8V
Max Surge Current 220A
Max Reverse Leakage Current 300μA
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.8V @ 55A
Output Current 18A
Current - Reverse Leakage @ Vr 300μA @ 800V
Diode Type Single Phase
Number of Elements 1
Qualification Status Not Qualified
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Current Rating 18A
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form SOLDER LUG
Terminal Position UPPER
Technology Standard
Voltage - Rated DC 800V
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Terminal Finish Nickel (Ni)
Number of Terminations 4
Part Status Active
Pbfree Code yes
Published 2010
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 4
Package / Case 4-Square, FO-A
Mounting Type QC Terminal
Mount Screw
Supply Chain
Factory Lead Time 20 Weeks
