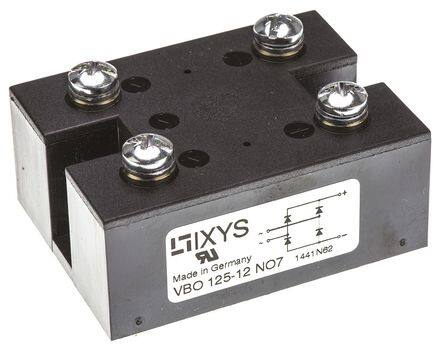

VBO125-12NO7
RoHS
RoHS compliant
RoHS compliantPackage PWS-C
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
IXYS SEMICONDUCTOR VBO125-12NO7 Bridge Rectifier Diode, Single, 1.2 kV, 124 A, Module, 1.3 V, 4 Pins
PDF
/
Buying Options
Total Price: USD $121.08
Unit Price: USD $121.08089
≥1 USD $121.08089
≥200 USD $48.312094
≥500 USD $46.69854
≥1000 USD $45.900297
Inventory: 1315
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 50mm
Length 67mm
Height 31mm
Technical
Max Forward Surge Current (Ifsm) 1.8kA
Peak Non-Repetitive Surge Current 1.95kA
Hole Diameter 5.5 mm
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Peak Reverse Current 300μA
Number of Phases 1
Average Rectified Current 124A
Forward Voltage 1.3V
Max Surge Current 1.8kA
Max Reverse Leakage Current 300μA
Forward Current 124A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.07V @ 50A
Current - Reverse Leakage @ Vr 200μA @ 1200V
Diode Type Single Phase
Element Configuration Single
Number of Elements 1
Max Output Current 125A
Qualification Status Not Qualified
Voltage - Rated AC 400V
Base Part Number VBO125
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2003
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 4
Package / Case PWS-C
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 16 Weeks
