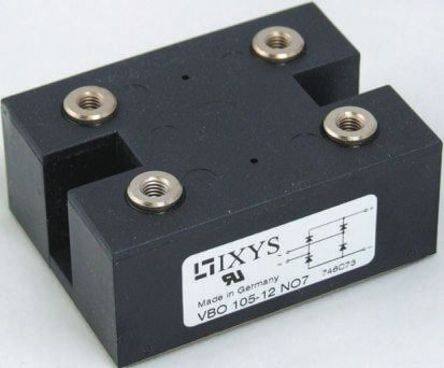

VBO105-16NO7
RoHS
RoHS compliant
RoHS compliantPackage PWS-C
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
Diode Rectifier Bridge Single 1.6KV 107A 4-Pin PWS-C
PDF
/
Buying Options
Total Price: USD $145.84
Unit Price: USD $145.840871
≥1 USD $145.840871
≥200 USD $58.191667
≥500 USD $56.247262
≥1000 USD $55.286219
Inventory: 1353
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Package / Case PWS-C
Number of Pins 4
Diode Element Material SILICON
Technical
Operating Temperature -40°C~150°C TJ
Packaging Bulk
Published 2003
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Additional Feature UL RECOGNIZED
Subcategory Bridge Rectifier Diodes
Technology Standard
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number VBO105
Qualification Status Not Qualified
Number of Elements 1
Element Configuration Single
Diode Type Single Phase
Current - Reverse Leakage @ Vr 300μA @ 1600V
Voltage - Forward (Vf) (Max) @ If 1.6V @ 150A
Case Connection ISOLATED
Forward Current 100A
Max Reverse Leakage Current 300μA
Max Surge Current 1.5kA
Current - Average Rectified (Io) 107A
Forward Voltage 1.6V
Average Rectified Current 100A
Number of Phases 1
Peak Reverse Current 100μA
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
Peak Non-Repetitive Surge Current 1.65kA
Max Forward Surge Current (Ifsm) 1.65kA
Dimensions
Height 31mm
Length 67mm
Width 50mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
