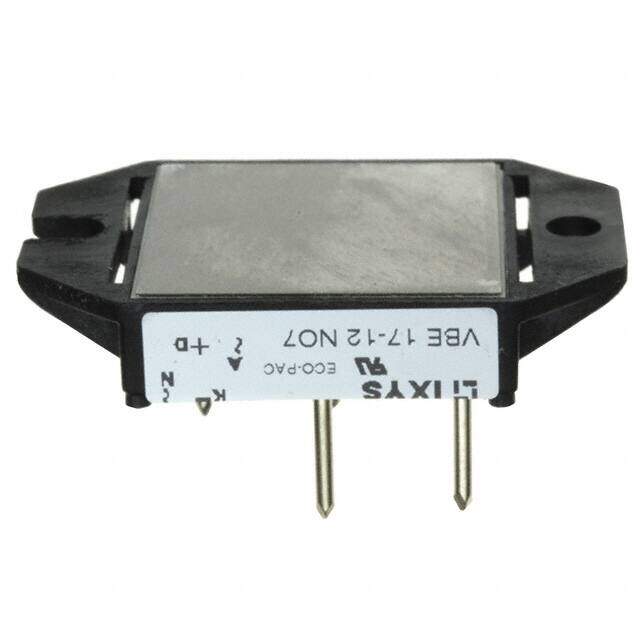

VBE17-12NO7
RoHS
RoHS compliant
RoHS compliantPackage ECO-PAC1
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 1P 1.2KV 19A ECOPAC1
PDF
/
Buying Options
Total Price: USD $27.78
Unit Price: USD $27.78359
≥1 USD $27.78359
≥200 USD $11.086128
≥500 USD $10.71589
≥1000 USD $10.533397
Inventory: 2669
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 30.3mm
Length 47mm
Height 9mm
Technical
Voltage - Peak Reverse (Max) 1.2kV
Peak Non-Repetitive Surge Current 45A
Number of Phases 1
Forward Voltage 2.92V
Current - Average Rectified (Io) 19A
Max Surge Current 40A
Max Reverse Leakage Current 60μA
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 2.92V @ 10A
Current - Reverse Leakage @ Vr 60μA @ 1200V
Diode Type Single Phase
Number of Elements 1
Qualification Status Not Qualified
Pin Count 4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature LOW NOISE
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2000
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 4
Package / Case ECO-PAC1
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Supply Chain
Factory Lead Time 16 Weeks
