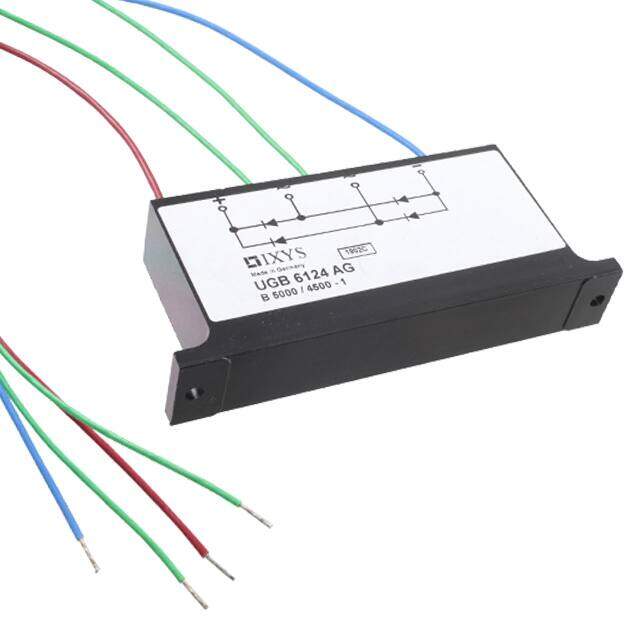

UGB6124AG
RoHS
RoHS compliant
RoHS compliantPackage UGB-1
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
IC MOD DIODE 1PHASE BRIDGE UGB1
PDF
/
Buying Options
Total Price: USD $185.84
Unit Price: USD $185.8384
≥1 USD $185.8384
≥10 USD $174.06136
Inventory: 57
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Chassis Mount, Screw
Mounting Type Chassis Mount
Package / Case UGB-1
Number of Pins 1
Diode Element Material SILICON
Technical
Operating Temperature 150°C TJ
Packaging Bulk
Published 2008
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Subcategory Bridge Rectifier Diodes
Technology Standard
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 4
JESD-30 Code R-XUFM-X4
Qualification Status Not Qualified
Number of Elements 4
Element Configuration Single
Diode Type Single Phase
Case Connection ISOLATED
Max Surge Current 50A
Output Current-Max 1A
Forward Voltage 6.25V
Average Rectified Current 1A
Number of Phases 1
Peak Reverse Current 1mA
Peak Non-Repetitive Surge Current 120A
Reverse Voltage 10.5kV
Compliance
RoHS Status ROHS3 Compliant
