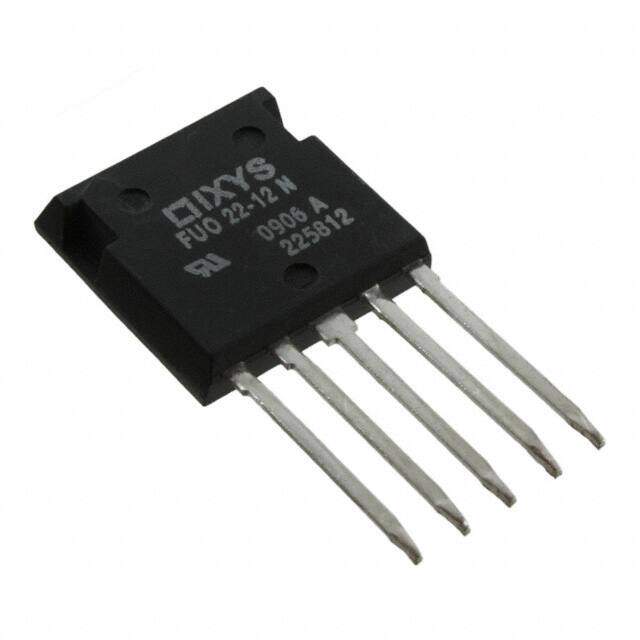

FUO22-12N
RoHS
RoHS compliant
RoHS compliantPackage i4-Pac?-5
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
Diode Rectifier Bridge Single 1.2KV 30A 5-Pin ISOPLUS i5-Pac
PDF
/
Buying Options
Total Price: USD $13.08
Unit Price: USD $13.07926
≥1 USD $13.07926
≥10 USD $12.33893
≥100 USD $11.6405
≥500 USD $10.9816
≥1000 USD $10.36
≥3000 USD $9.77358
Inventory: 3019
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 330.2μm
Width 304.8μm
Length 609.6μm
Height 26.42mm
Technical
Peak Non-Repetitive Surge Current 160A
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Peak Reverse Current 10μA
Number of Phases 3
Average Rectified Current 30A
Forward Voltage 1.3V
Current - Average Rectified (Io) 28A
Max Surge Current 100A
Max Reverse Leakage Current 5μA
Forward Current 30A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.62V @ 30A
Current - Reverse Leakage @ Vr 10μA @ 1200V
Diode Type Three Phase
Element Configuration Single
Number of Elements 1
Pin Count 5
Technology Standard
Subcategory Bridge Rectifier Diodes
Capacitance 700FF
Additional Feature UL RECOGNIZED
Voltage - Rated 25V
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Published 2007
Packaging Tube
Operating Temperature -55°C~175°C TJ
Physical
Diode Element Material SILICON
Number of Pins 5
Package / Case i4-Pac?-5
Mounting Type Through Hole
Mount Surface Mount, Through Hole
Supply Chain
Factory Lead Time 32 Weeks
