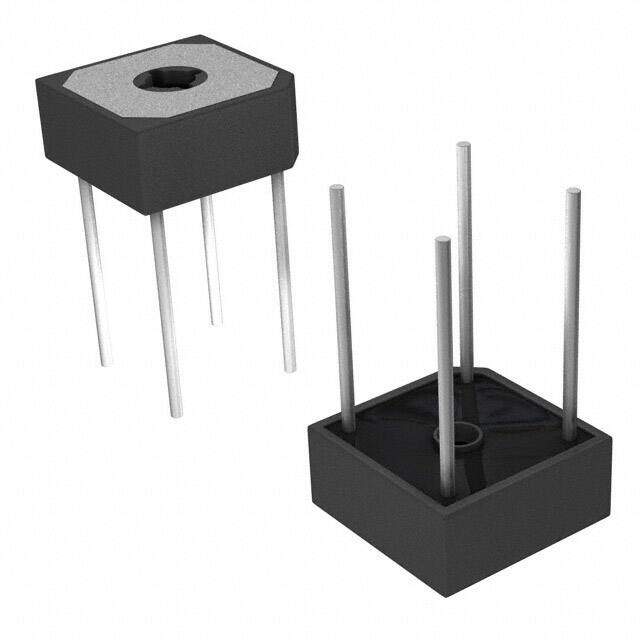

PBPC601
RoHS
RoHS compliant
RoHS compliantPackage 4-Square, PBPC-6
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 1PHASE 50V 4A PBPC-6
PDF
/
Inventory: 9031
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 15.75mm
Length 15.75mm
Height 6.86mm
Technical
Peak Non-Repetitive Surge Current 125A
Max Repetitive Reverse Voltage (Vrrm) 50V
Peak Reverse Current 10μA
Number of Phases 1
Forward Voltage 1.1V
Current - Average Rectified (Io) 4A
Output Current-Max 4A
Max Surge Current 125A
Max Reverse Leakage Current 10μA
Forward Current 6A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.1V @ 3A
Current - Reverse Leakage @ Vr 10μA @ 50V
Diode Type Single Phase
Element Configuration Single
Number of Elements 1
JESD-30 Code S-PUFM-W4
Pin Count 4
Time@Peak Reflow Temperature-Max (s) 40
Peak Reflow Temperature (Cel) 260
Terminal Form WIRE
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e2
Published 2006
Packaging Bulk
Operating Temperature -65°C~125°C TJ
Physical
Diode Element Material SILICON
Number of Pins 6
Package / Case 4-Square, PBPC-6
Mounting Type Through Hole
Mount Screw, Through Hole
