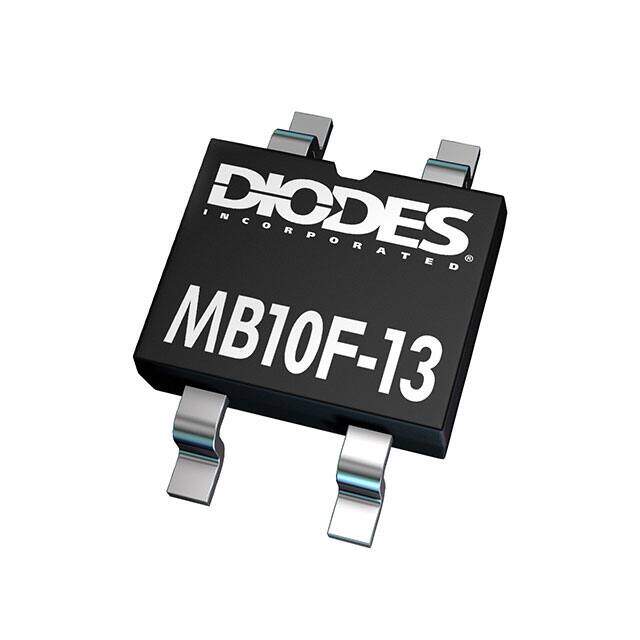

MB10F-13
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, Gull Wing
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 1PHASE 1KV 800MA MBF
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.3696
≥1 USD $0.3696
≥10 USD $0.286
≥100 USD $0.171336
≥500 USD $0.158646
≥1000 USD $0.107879
≥3000 USD $0.099317
Inventory: 10339
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Breakdown Voltage-Min 1000V
Voltage - Peak Reverse (Max) 1kV
Non-rep Pk Forward Current-Max 30A
Number of Phases 1
Current - Average Rectified (Io) 800mA
Output Current-Max 0.8A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 800mA
Current - Reverse Leakage @ Vr 5μA @ 1000V
Diode Type Single Phase
Configuration BRIDGE, 4 ELEMENTS
Number of Elements 4
JESD-30 Code R-PDSO-G4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology Standard
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2000
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case 4-SMD, Gull Wing
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
