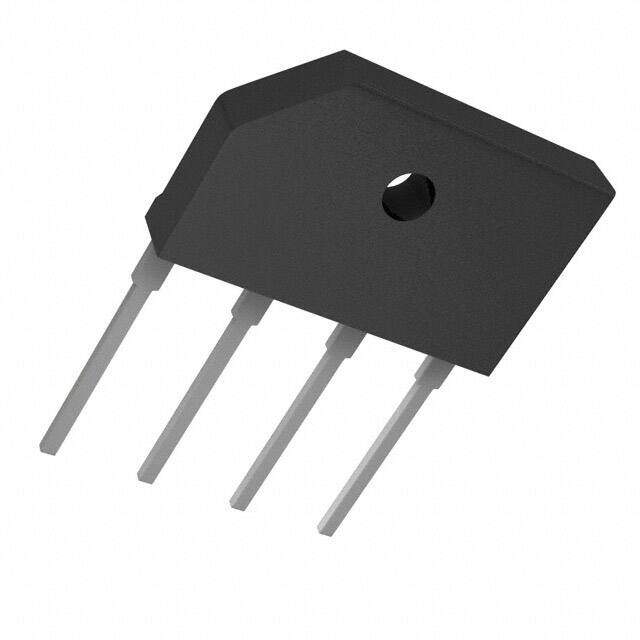

KBJ610G
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP, KBJ
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 1PHASE 1KV 6A KBJ
PDF
/
Buying Options
Total Price: USD $1.17
Unit Price: USD $1.1704
≥1 USD $1.1704
≥10 USD $0.95744
≥100 USD $0.744744
≥500 USD $0.631242
≥1000 USD $0.514219
≥3000 USD $0.48407
Inventory: 59
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 9.7mm
Length 25.2mm
Height 19.3mm
Technical
Reverse Voltage (DC) 700V
Peak Non-Repetitive Surge Current 170A
Max Repetitive Reverse Voltage (Vrrm) 1kV
Peak Reverse Current 5μA
Number of Phases 1
Forward Voltage 1V
Output Current-Max 6A
Max Surge Current 170A
Forward Current 6A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1V @ 3A
Current - Reverse Leakage @ Vr 5μA @ 1000V
Diode Type Single Phase
Element Configuration Single
Number of Elements 1
Pin Count 4
Base Part Number KBJ610
Time@Peak Reflow Temperature-Max (s) 40
Peak Reflow Temperature (Cel) 260
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Terminal Finish Matte Tin (Sn)
Termination Through Hole
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e3
Published 2006
Packaging Tube
Operating Temperature -65°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 4
Package / Case 4-SIP, KBJ
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 31 Weeks
