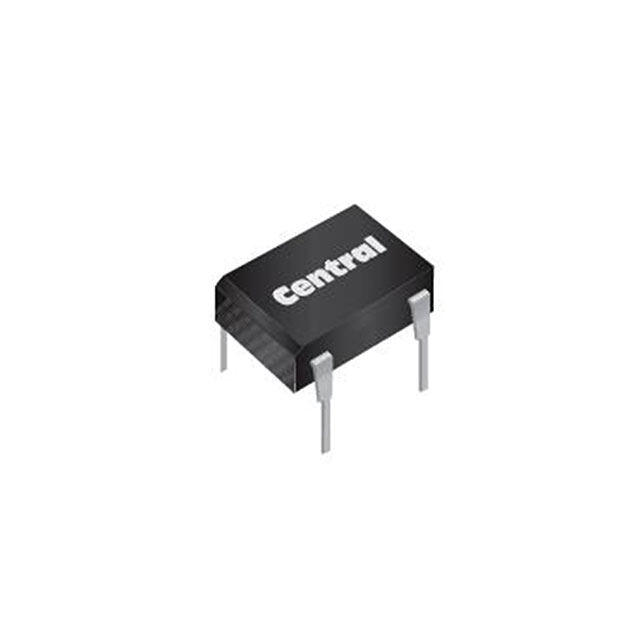

CBR1-D010
RoHS
/
Package DIP
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
PDF
/
Inventory: 7004
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Reverse Test Voltage 100V
Breakdown Voltage-Min 100V
Reverse Current-Max 10μA
Forward Voltage-Max 1.1V
Non-rep Pk Forward Current-Max 50A
Rep Pk Reverse Voltage-Max 100V
Number of Phases 1
Output Current-Max 1A
Diode Type BRIDGE RECTIFIER DIODE
Configuration BRIDGE, 4 ELEMENTS
Number of Elements 4
Operating Temperature (Min) -65°C
Operating Temperature (Max) 150°C
Qualification Status Not Qualified
Pin Count 4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
HTS Code 8541.10.00.80
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 4
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 2016
Physical
Diode Element Material SILICON
Package / Case DIP
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
