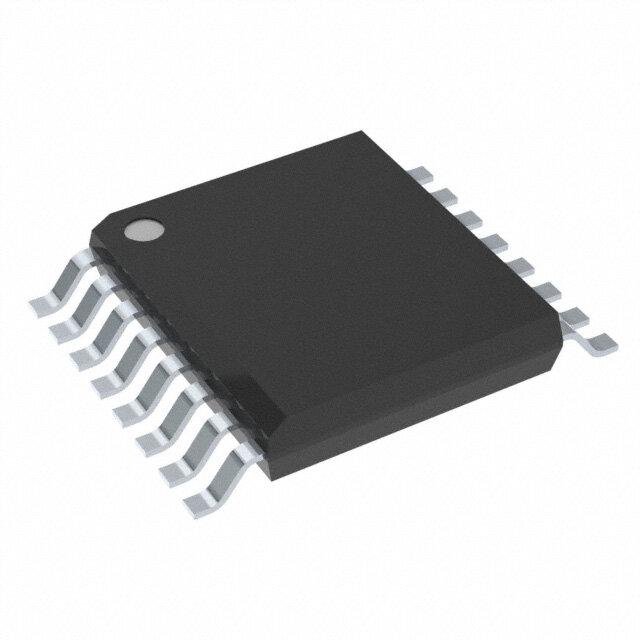

ISO7741FDBQ
RoHS
RoHS compliant
RoHS compliantPackage 16-SSOP (0.154, 3.90mm Width)
Category Isolators / Digital Isolators
Description
DGTL ISO 2500VRMS 4CH GP 16SSOP
PDF
/
Buying Options
Total Price: USD $3.19
Unit Price: USD $3.1944
≥1 USD $3.1944
≥10 USD $2.8688
≥100 USD $2.711694
≥500 USD $2.35019
≥1000 USD $2.229656
≥3000 USD $2.000654
Inventory: 1009
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness 1.5mm
Width 3.9mm
Length 4.9mm
Height 1.75mm
Technical
Pulse Width Distortion (Max) 4.9ns
Isolated Power No
Inputs - Side 1/Side 2 3/1
Common Mode Transient Immunity (Min) 85kV/μs
Propagation Delay tpLH / tpHL (Max) 16ns, 16ns
Channel Type Unidirectional
Rise / Fall Time (Typ) 2.4ns 2.4ns
Data Rate 100Mbps
Number of Channels 4
Voltage - Isolation 2500Vrms
Base Part Number ISO7741
Terminal Pitch 0.635mm
Supply Voltage 2.5V
Number of Functions 4
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 2.25V~5.5V
Technology Capacitive Coupling
Additional Feature ALSO REQUIRED VCC2 2.25-5.5V SUPPLY; ALSO OPERATE WITH 3.3V AND 5V SUPPLY
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type General Purpose
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Number of Pins 16
Surface Mount YES
Package / Case 16-SSOP (0.154, 3.90mm Width)
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 12 Weeks
Alternative Model
