ISO35DW
RoHS
RoHS compliant

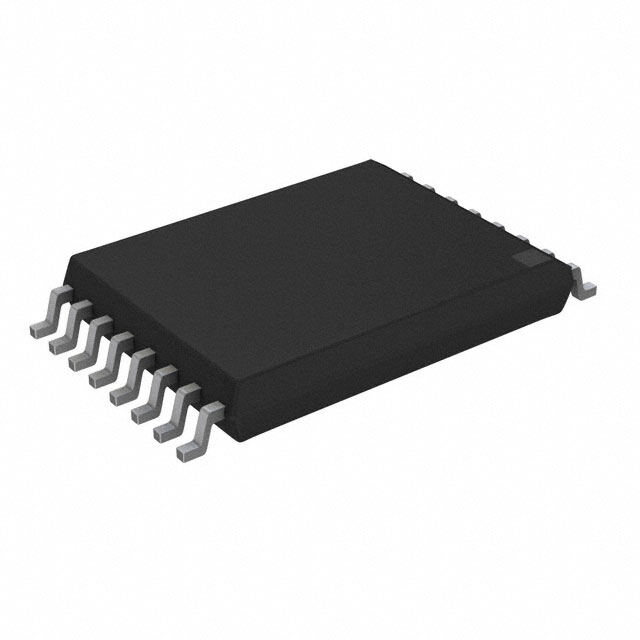

RoHS compliantPackage 16-SOIC (0.295, 7.50mm Width)
Category Isolators / Digital Isolators
Description
IC, FULL-DUPLEX RS485 TXRX 16SOIC
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.37035
≥1 USD $5.37035
≥10 USD $4.4061
≥100 USD $4.26835
≥500 USD $4.1306
≥1000 USD $3.99285
Inventory: 33039
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Thickness 2.35mm
Width 7.5mm
Length 10.3mm
Height 2.65mm
Technical
Isolated Power No
Inputs - Side 1/Side 2 2/1
Supply Voltage1-Nom 3.3V
Common Mode Transient Immunity (Min) 25kV/μs
Simplex/Duplex Full Duplex
ESD Protection Yes
Number of Transceivers 1
Interface Standard EIA-422; TIA-422; EIA-485; TIA-485
Receiver Number of Bits 1
Channel Type Unidirectional
Dual Supply Voltage 3.3V
Min Dual Supply Voltage 3.15V
Driver Number of Bits 1
Max Dual Supply Voltage 3.6V
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Differential Output YES
Data Rate 1Mbps
Logic Function Transceiver
Propagation Delay 340 ns
Operating Supply Current 8mA
Number of Channels 3
Working Voltage 560V
Operating Supply Voltage 3.3V
Voltage - Isolation 2500Vrms
Pin Count 16
Base Part Number ISO35
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 3.15V~3.6V
Technology Capacitive Coupling
Subcategory Line Driver or Receivers
Type RS422, RS485
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 547.485991mg
Number of Pins 16
Surface Mount YES
Package / Case 16-SOIC (0.295, 7.50mm Width)
Mounting Type Surface Mount
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 12 Weeks
