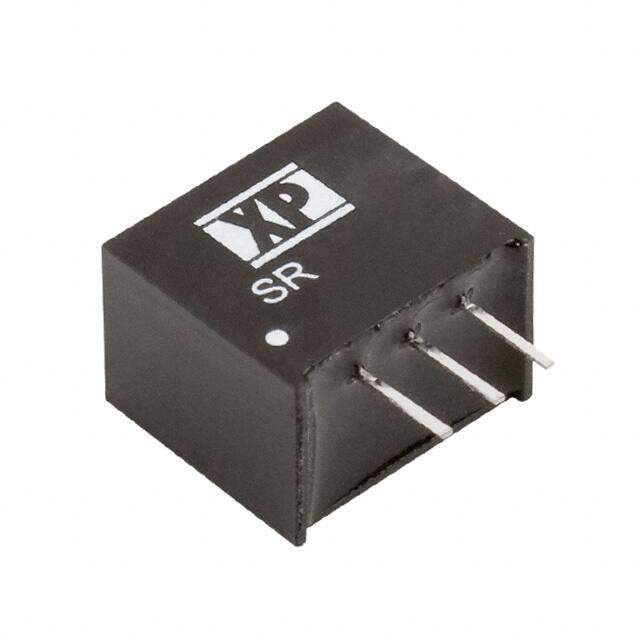

SR05S15 image
Favorite
SR05S15 image
Favorite

SR05S15

XP Power
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description XP POWER SR05S15 Non Isolated POL DC/DC Converter, Regulated, Fixed, SIP, Through Hole, 1 Output, 7.5 W, 15 V
PDF
/
Inventory: 1386
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Height 10.16mm

Technical

Switching Frequency 330kHz
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 34V
Nominal Output Voltage 15V
Max Output Power 7.5W
Output Power 8W
Output Current 500mA
Current - Output (Max) 500mA
Voltage - Input (Min) 18V
Max Output Current 500mA
Output Voltage 15V
Efficiency 97%
Number of Outputs 1
Depth 11.7mm
Max Power Dissipation 8W
Applications ITE (Commercial)
Type Linear Regulator Replacement
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.46Lx0.30W x 0.40 H 11.7mmx7.5mmx10.2mm
Series SR
Published 2000
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Number of Pins 3
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount PCB, Through Hole

Supply Chain

Factory Lead Time 10 Weeks
