RDQ100110S05
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description

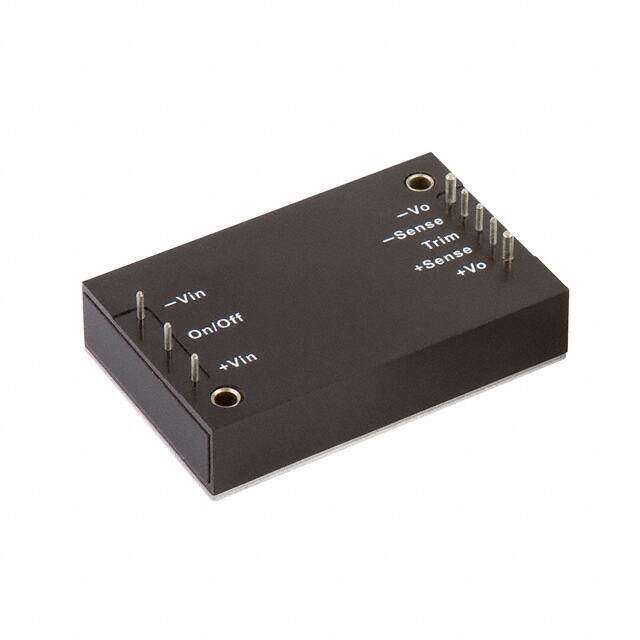

XP POWER RDQ100110S05 Isolated Board Mount DC/DC Converter, Railway, Fixed, Adjustable, 1 Output, 66 V, 160 V, 100 W, 5 V
PDF
/
Buying Options
Total Price: USD $179.78
Unit Price: USD $179.776
≥1 USD $179.776
≥10 USD $169.6
≥100 USD $160
≥500 USD $150.9434
≥1000 USD $142.39943
Inventory: 1827
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2012
Series RDQ (100W)
Size / Dimension 2.28Lx1.45W x 0.50 H 57.9mmx36.8mmx12.7mm
Feature Remote On/Off, OTP, OVP, SCP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial), Railway
Max Power Dissipation 100W
Depth 57.9mm
Number of Outputs 1
Efficiency 90%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 160V
Max Output Current 20A
Voltage - Output 1 5V
Output Power 100W
Control Features Enable, Active High
Current - Output 1 20A
Max Output Power 100W
Max Input Voltage (DC) 160V
Min Input Voltage (DC) 66V
Dimensions
Height 12.7mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
