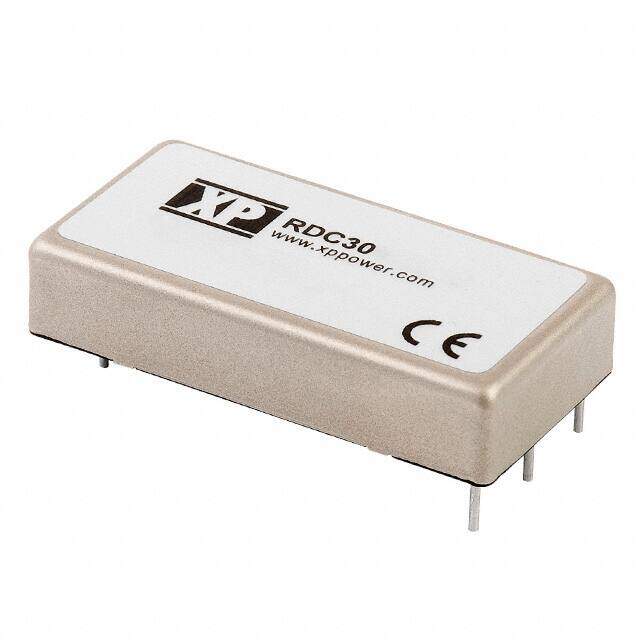

RDC3072S05 image
Favorite
RDC3072S05 image
Favorite

RDC3072S05

XP Power
RoHS
RoHS RoHS compliant
Package 7-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description XP POWER RDC3072S05 Isolated Board Mount DC/DC Converter, DIP, Adjustable, Through Hole, 36 V, 140 V, 5 V
PDF
/
Inventory: 3739
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 7-DIP Module, 6 Leads

Technical

Operating Temperature -40°C~75°C
Packaging Tube
Published 2013
Series RDC (30W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications Railway
Max Power Dissipation 30W
Depth 50.8mm
Number of Outputs 1
Efficiency 91%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 140V
Output Voltage 5V
Max Output Current 6A
Output Current 6A
Output Power 30W
Control Features Enable, Active High
Current - Output 1 6A
Max Output Power 30W
Nominal Output Voltage 5V
Max Input Voltage (DC) 140V
Min Input Voltage (DC) 36V

Dimensions

Height 10.16mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
