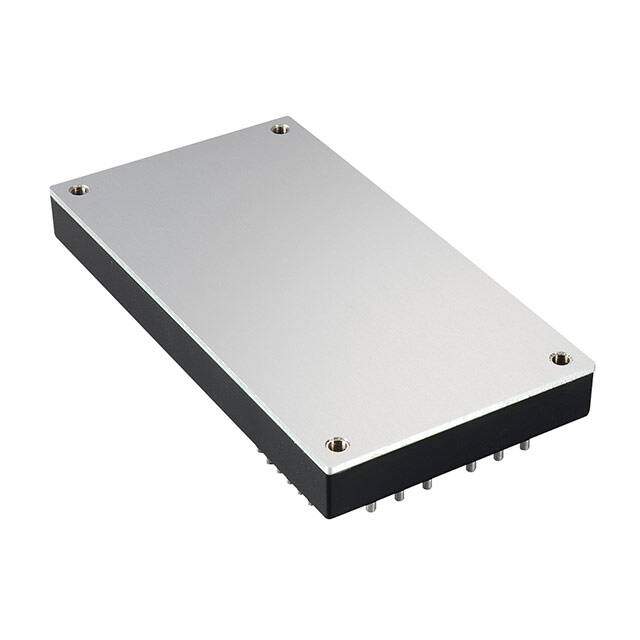

QSB60024S28
RoHS
RoHS compliant
RoHS compliantPackage 16-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Power Supply;DC-DC CONVERTER 600W
PDF
/
Buying Options
Total Price: USD $235.96
Unit Price: USD $235.956
≥1 USD $235.956
≥10 USD $222.6
≥100 USD $210
Inventory: 1618
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 16-DIP Module
Technical
Operating Temperature -40°C~100°C
Packaging Box
Published 2014
Series QSB (600W)
Size / Dimension 4.60Lx2.40W x 0.50 H 116.8mmx61.0mmx12.7mm
Feature Remote On/Off, OCP, OTP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 602W
Max Power Dissipation 600W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Efficiency 90%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Output Voltage 28V
Max Output Current 21.5A
Voltage - Output 1 28V
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Output Power 600W
Control Features Enable, Active High
Total Power Output-Max 602W
Dimensions
Height 12.7mm
Compliance
RoHS Status ROHS3 Compliant
