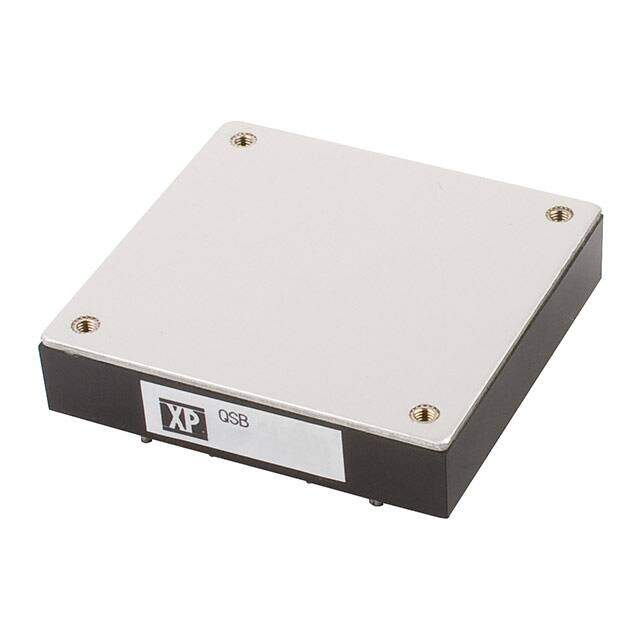

QSB15048S05
RoHS
RoHS compliant
RoHS compliantPackage 9-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Power Supply;DC-DC CONVERTER 150W
PDF
/
Buying Options
Total Price: USD $180
Unit Price: USD $180
≥1 USD $180
≥10 USD $169.81132
≥100 USD $160.19936
≥500 USD $151.13147
≥1000 USD $142.57686
≥3000 USD $134.50647
Inventory: 8483
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 57.9mm
Height 13.208mm
Technical
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 75V
Max Output Power 150W
Current - Output 1 30A
Control Features Enable, Active High
Output Power 150W
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Output 1 5V
Max Output Current 30A
Output Voltage 5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 90%
Number of Outputs 1
JESD-30 Code R-XDMA-P9
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 61mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 150W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OTP, OVP, SCP
Size / Dimension 2.40Lx2.28W x 0.52 H 61.0mmx57.9mmx13.2mm
Series QSB (150W)
Published 2014
Packaging Box
Operating Temperature -40°C~100°C
Physical
Package / Case 9-DIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 14 Weeks
