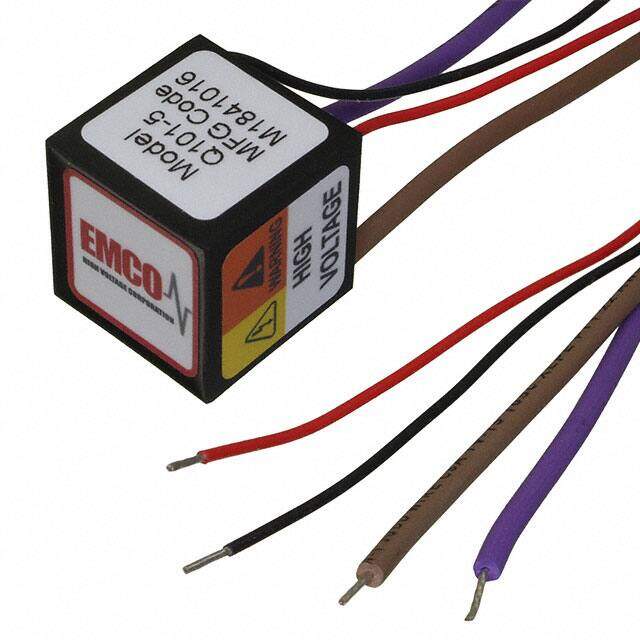

Q101-5
RoHS
RoHS compliant
RoHS compliantPackage 4-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
SINGLE O/P, DC-HV DC PCB MOUNT,
PDF
/
Buying Options
Total Price: USD $393.26
Unit Price: USD $393.26
≥1 USD $393.26
≥10 USD $371
≥100 USD $350
≥500 USD $330.18868
≥1000 USD $311.49875
Inventory: 1621
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 21.59mm
Technical
Min Input Voltage (DC) 700mV
Max Input Voltage (DC) 5V
Max Output Power 500mW
Current - Output 1 50μA
Trim/Adjustable Output YES
Voltage - Input (Min) 0.7V
Voltage - Output 1 10000V
Max Output Current 50μA
Voltage - Input (Max) 5V
Voltage - Isolation 500V
Number of Outputs 1
JESD-30 Code S-XDMA-W4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 12.7mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form WIRE
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 500mW
Applications ITE (Commercial)
Type High Voltage - Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Proportional Output
Size / Dimension 0.85Lx0.85W x 0.85 H 21.6mmx21.6mmx21.6mm
Series XP EMCO - Q (0.5W)
Published 2015
Packaging Box
Operating Temperature -10°C~60°C
Physical
Package / Case 4-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
