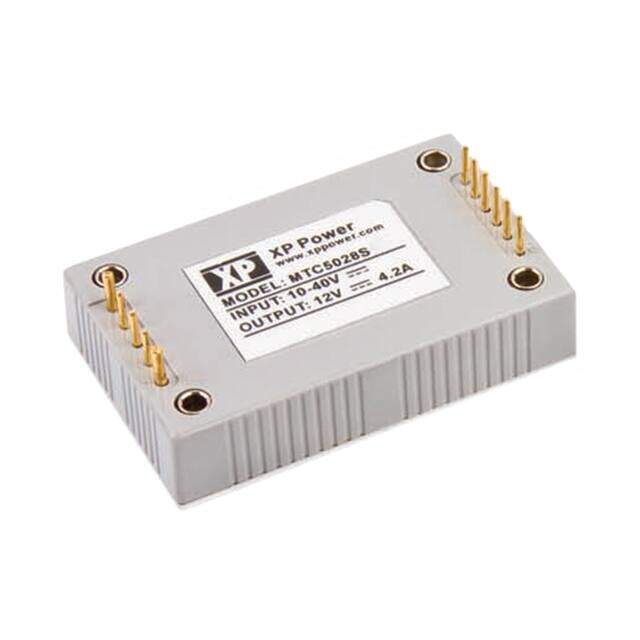

MTC5028S05
RoHS
RoHS compliant
RoHS compliantPackage 11-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Power Supply;50W mil-spec DC-DC converter single output
PDF
/
Buying Options
Total Price: USD $241.57
Unit Price: USD $241.574
≥1 USD $241.574
≥10 USD $227.9
≥100 USD $215
Inventory: 1794
Minimum: 1
-
+
Technical Details
Technical
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 50W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 11
Number of Outputs 1
Efficiency 83%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 40V
Output Voltage 5V
Max Output Current 10A
Voltage - Output 1 5V
Voltage - Input (Min) 10V
Input Voltage-Nom 28V
Trim/Adjustable Output YES
Output Power 50W
Control Features Enable, Active High
Number of Terminations 11
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OTP, OVP
Size / Dimension 2.28Lx1.45W x 0.50 H 57.9mmx36.8mmx12.7mm
Series MTC (50W)
Published 2011
Packaging Box
Operating Temperature -40°C~100°C
Dimensions
Height 12.7mm
Length 50.8mm
Width 36.8mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Package / Case 11-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
