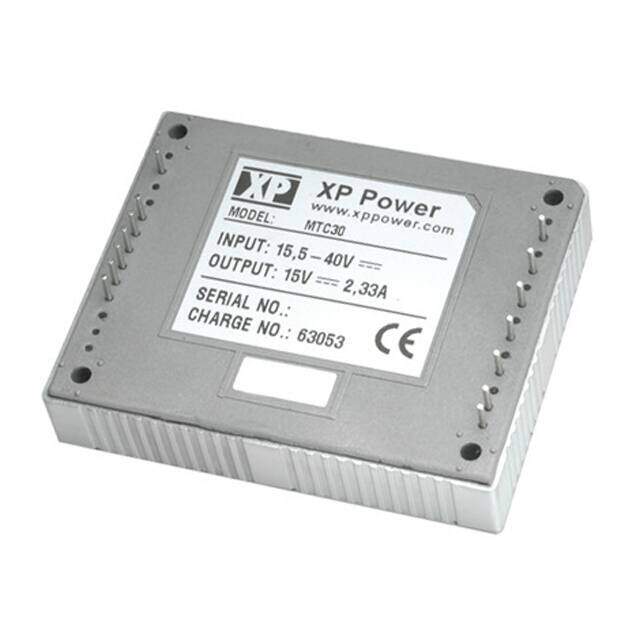

MTC3028D12
RoHS
RoHS compliant
RoHS compliantPackage 26-Module, 12 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Power Supply;30W mil-spec DC-DC converter dual output
PDF
/
Buying Options
Total Price: USD $473.82
Unit Price: USD $473.82
≥1 USD $473.82
≥10 USD $447
≥100 USD $421.69811
≥1000 USD $375.30982
Inventory: 1479
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 26-Module, 12 Leads
Number of Pins 26
Technical
Operating Temperature -40°C~100°C
Packaging Box
Published 2008
Series MTC (30W)
Size / Dimension 2.28Lx1.81W x 0.50 H 58.0mmx46.0mmx12.7mm
Feature Remote On/Off, OCP, OTP, OVP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 26
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power Rating 30W
Max Power Dissipation 30W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 58mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 26
Number of Outputs 2
Efficiency 81%
Voltage - Isolation 1.5kV
Output Voltage 12V
Max Output Current 2A
Input Voltage-Nom 28V
Trim/Adjustable Output NO
Current - Output (Max) 2A 2A
Output Current 2A
Output Power 30W
Control Features Enable, Active High
Voltage - Output 2 -12V
Current - Output 1 2A
Max Output Power 30W
Current - Output 2 2A
Max Input Voltage (DC) 40V
Min Input Voltage (DC) 15.5V
Dimensions
Height 12.7mm
Width 46mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
