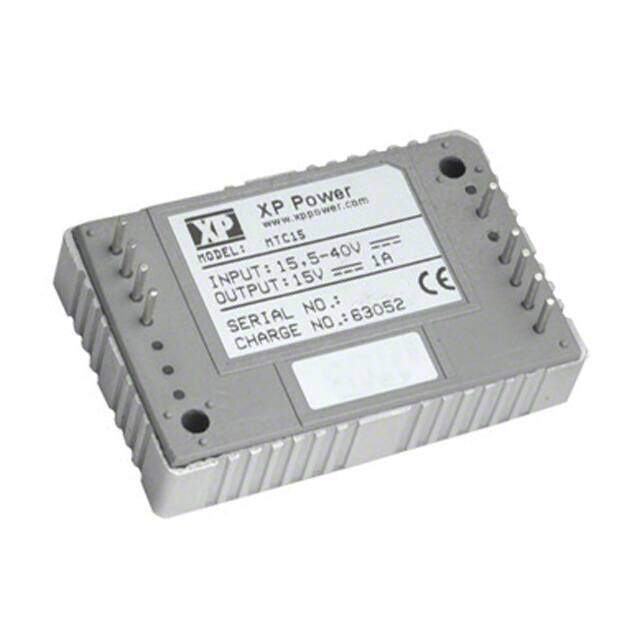

MTC1528D12
RoHS
RoHS compliant
RoHS compliantPackage 14-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Power Supply;15W mil-spec DC-DC converter dual output
PDF
/
Buying Options
Total Price: USD $349
Unit Price: USD $349
≥1 USD $349
≥10 USD $329.24528
≥100 USD $310.60876
≥1000 USD $276.44069
≥3000 USD $260.7931
Inventory: 3750
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 14-DIP Module, 8 Leads
Technical
Operating Temperature -40°C~100°C
Packaging Box
Published 2008
Series MTC (15W)
Size / Dimension 1.57Lx1.02W x 0.50 H 40.0mmx26.0mmx12.7mm
Feature Remote On/Off, OCP, OTP, OVP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 14
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power Rating 15W
Max Power Dissipation 15W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 40mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 14
JESD-30 Code R-XDMA-P14
Number of Outputs 2
Efficiency 80%
Voltage - Isolation 1.5kV
Output Voltage 12V
Max Output Current 1A
Input Voltage-Nom 28V
Trim/Adjustable Output NO
Current - Output (Max) 1A 1A
Output Current 1A
Output Power 15W
Control Features Enable, Active High
Voltage - Output 2 -12V
Current - Output 1 1A
Max Output Power 15W
Current - Output 2 1A
Max Input Voltage (DC) 40V
Min Input Voltage (DC) 15.5V
Dimensions
Height 12.7mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
