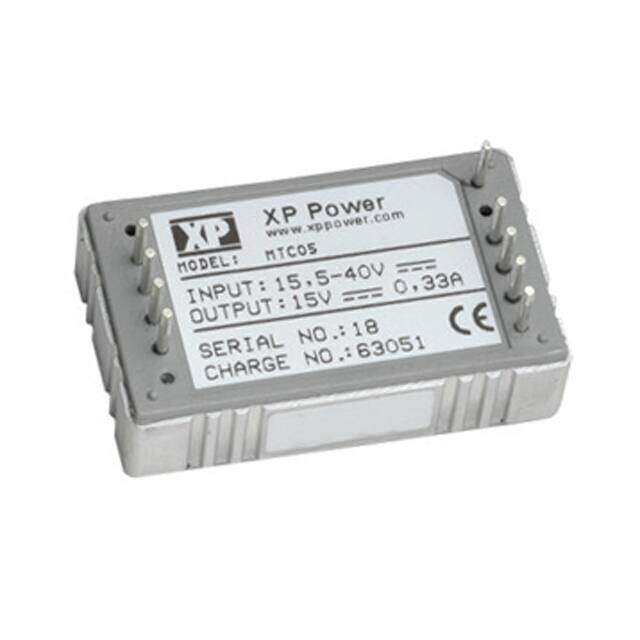

MTC0528S28
RoHS
RoHS compliant
RoHS compliantPackage 12-DIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Power Supply;5W mil-spec DC-DC converter single output
PDF
/
Inventory: 7549
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 12-DIP Module, 9 Leads
Technical
Operating Temperature -40°C~100°C
Packaging Box
Published 2013
Series MTC (5W)
Size / Dimension 1.26Lx0.76W x 0.34 H 32.0mmx19.3mmx8.7mm
JESD-609 Code e4
Feature OCP, OTP, OVP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Type Isolated Module
Terminal Finish GOLD
Applications ITE (Commercial)
Power Rating 5W
Max Power Dissipation 5W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Terminal Pitch 2.54mm
Pin Count 12
Number of Outputs 1
Efficiency 78%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 40V
Output Voltage 28V
Max Output Current 180mA
Voltage - Output 1 28V
Voltage - Input (Min) 15.5V
Input Voltage-Nom 28V
Trim/Adjustable Output YES
Output Current 180mA
Output Power 5W
Total Power Output-Max 5W
Dimensions
Height 8.636mm
Length 32mm
Compliance
RoHS Status ROHS3 Compliant
