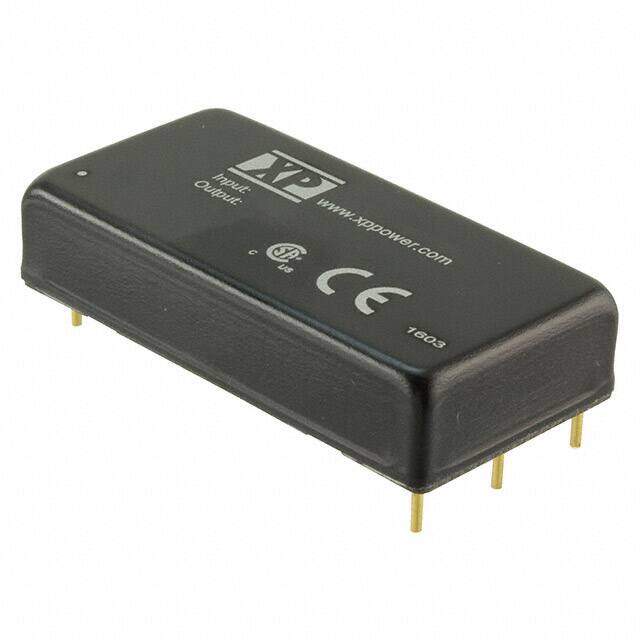

JWL5048S3V3
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC-DC CONV. 50W, 4:1 INPUT, 1X2
PDF
/
Buying Options
Total Price: USD $104
Unit Price: USD $104
≥1 USD $104
≥10 USD $98.11321
≥100 USD $92.55963
Inventory: 2899
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 25.4mm
Height 11mm
Technical
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 75V
Max Output Power 50W
Current - Output 1 10A
Control Features Enable, Active High
Output Power 50W
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Output 1 3.3V
Max Output Current 10A
Output Voltage 3.3V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 90%
Number of Outputs 1
JESD-30 Code R-MDMA-P6
Depth 50.8mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 33W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, SCP
Size / Dimension 2.00Lx1.00W x 0.43 H 50.8mmx25.4mmx11.0mm
Series JWL (50W)
Published 2016
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 17 Weeks
