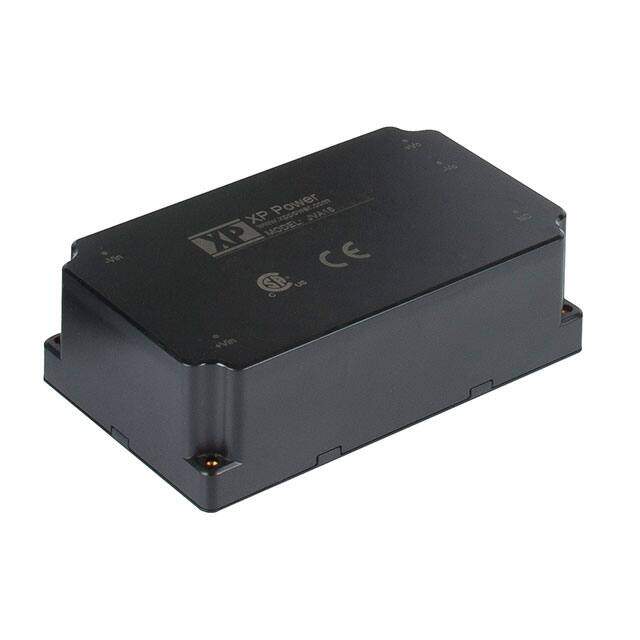

JVA151500S12 image
Favorite
JVA151500S12 image
Favorite

JVA151500S12

XP Power
RoHS
RoHS RoHS compliant
Package 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated Board Mount DC/DC Converter, 1 Output, 15 W, 12 V, 1.25 A
PDF
/
Buying Options
Total Price: USD $97.5
Unit Price: USD $97.5
≥1 USD $97.5
≥10 USD $91.98113
≥100 USD $86.77465
Inventory: 967
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 75mm
Height 40mm

Technical

Output Power 15W
Current - Output (Max) 1.25A
Trim/Adjustable Output NO
Input Voltage-Nom 800V
Voltage - Input (Min) 200V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 1500V
Voltage - Isolation 4kV
Efficiency 72%
Number of Outputs 1
JESD-30 Code R-XDMA-P5
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off
Size / Dimension 4.92Lx2.95W x 1.57 H 125.0mmx75.0mmx40.0mm
Series JVA15 (15W)
Published 2017
Operating Temperature -40°C~70°C With Derating

Physical

Surface Mount NO
Package / Case 5-DIP Module
Mounting Type Through Hole

Supply Chain

Factory Lead Time 13 Weeks
