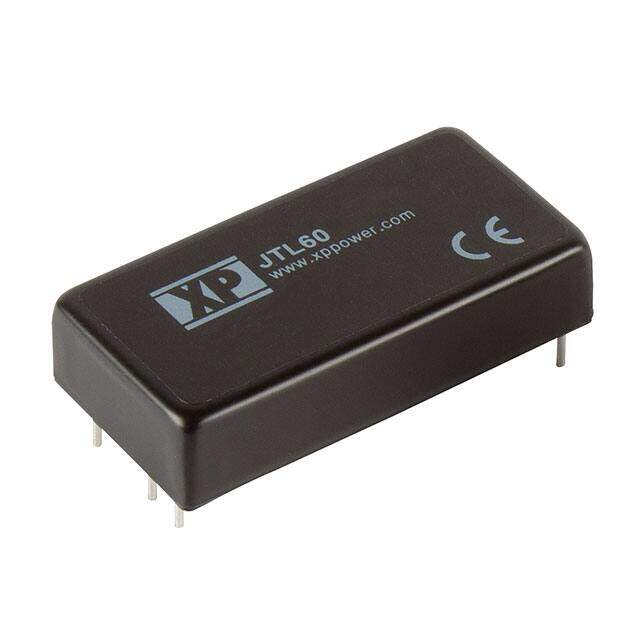

JTL6048D15

XP Power
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC-DC CONV, 60W, 4:1 INPUT, 2X1
PDF
/
Inventory: 8287
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module

Technical

Operating Temperature -40°C~85°C
Packaging Tube
Published 2016
Series JTL60 (60W)
Size / Dimension 2.00Lx1.00W x 0.45 H 50.8mmx25.4mmx11.4mm
Feature Remote On/Off, OVP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 60W
Depth 25.4mm
Number of Outputs 2
Efficiency 91%
Voltage - Isolation 1.6kV
Max Output Current 2A
Voltage - Output 1 15V
Current - Output (Max) 2A 2A
Output Power 60W
Control Features Enable, Active High
Voltage - Output 2 -15V
Current - Output 1 2A
Max Output Power 60W
Current - Output 2 2A
Max Input Voltage (DC) 75V
Min Input Voltage (DC) 18V

Dimensions

Height 11.43mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
