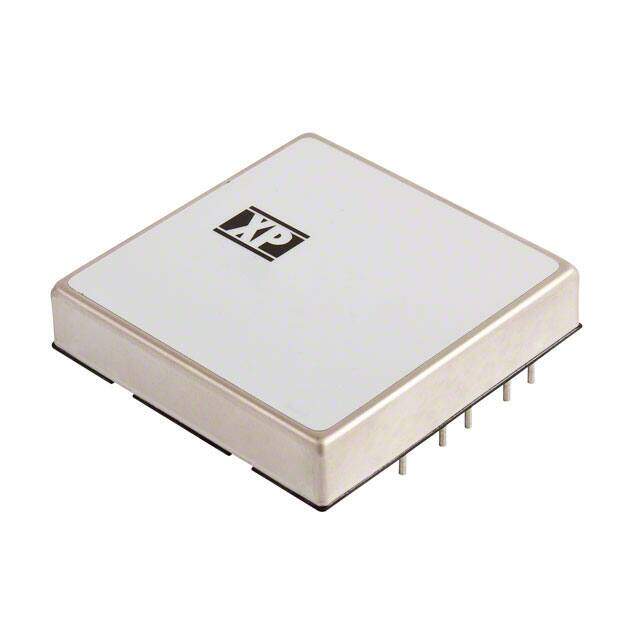

JTL4024D15 image
Favorite
JTL4024D15 image
Favorite

JTL4024D15

XP Power
RoHS
RoHS RoHS compliant
Package 8-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description XP POWER JTL4024D15 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 9 V, 36 V, 40 W, 15 V
PDF
/
Buying Options
Total Price: USD $96.07
Unit Price: USD $96.0678
≥1 USD $96.0678
≥10 USD $90.63
≥100 USD $85.5
Inventory: 109
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Height 10.16mm

Technical

Min Input Voltage (DC) 9V
Max Input Voltage (DC) 36V
Current - Output 2 1.35A
Nominal Output Voltage -15V
Max Output Power 40W
Current - Output 1 1.35A
Voltage - Output 2 -15V
Control Features Enable, Active High
Output Power 40W
Output Current 1.35A
Current - Output (Max) 1.35A 1.35A
Operating Supply Voltage 24V
Max Output Current 1.35A
Output Voltage 15V
Voltage - Isolation 1.6kV
Efficiency 89%
Number of Outputs 2
Depth 50.8mm
Max Power Dissipation 40W
Power Rating 40W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Series JTL (40W)
Published 2011
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Package / Case 8-DIP Module
Mounting Type Through Hole
Mount PCB, Through Hole

Supply Chain

Factory Lead Time 10 Weeks
