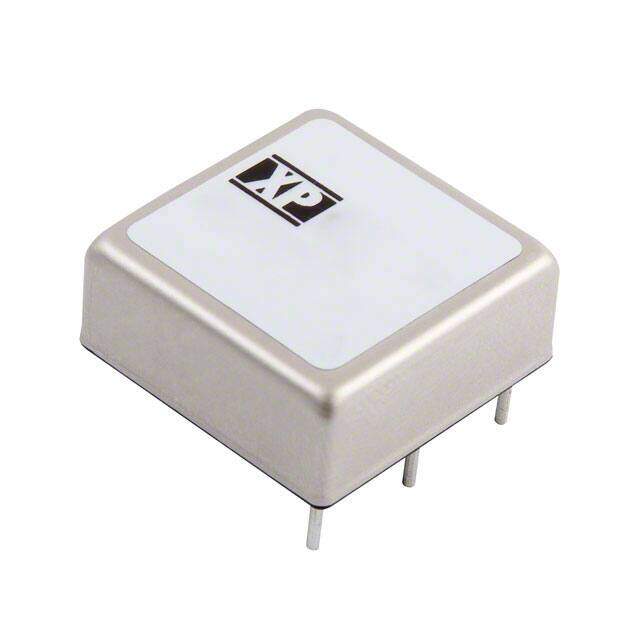

JTK2048S05
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JTK2048S05 Isolated Board Mount DC/DC Converter, 4:1 Input, Fixed, 1 Output, 18 V, 75 V, 20 W, 5 V
PDF
/
Buying Options
Total Price: USD $44.38
Unit Price: USD $44.3822
≥1 USD $44.3822
≥10 USD $41.87
≥100 USD $39.5
≥500 USD $37.26415
≥1000 USD $35.15486
Inventory: 9214
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 9.906mm
Technical
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 75V
Nominal Output Voltage 5V
Max Output Power 20W
Current - Output 1 4A
Control Features Enable, Active High
Output Power 20W
Output Current 4A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Operating Supply Voltage 48V
Max Output Current 4A
Output Voltage 5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 89%
Number of Outputs 1
JESD-30 Code S-XDMA-T6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 25.4mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 20W
Power Rating 20W
Additional Feature SEATED HGT-CALCULATED
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Series JTK (20W)
Published 2010
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
