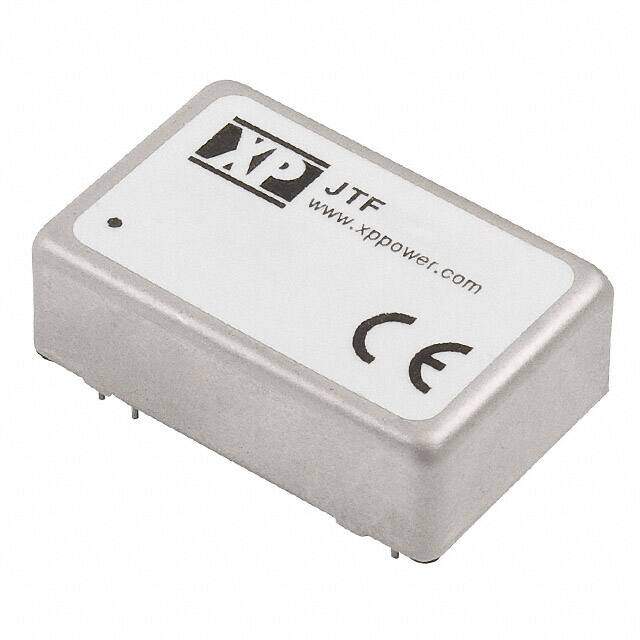

JTF1024D12
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JTF1024D12 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 9 V, 36 V, 10 W, 12 V
PDF
/
Buying Options
Total Price: USD $32.81
Unit Price: USD $32.80912
≥1 USD $32.80912
≥10 USD $30.952
≥100 USD $29.2
≥500 USD $27.54717
≥1000 USD $25.9879
Inventory: 6204
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 10.16mm
Technical
Min Input Voltage (DC) 9V
Max Input Voltage (DC) 36V
Current - Output 2 417mA
Nominal Output Voltage -12V
Max Output Power 10W
Current - Output 1 417mA
Voltage - Output 2 -12V
Control Features Enable, Active High
Output Power 10W
Output Current 417mA
Current - Output (Max) 417mA 417mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Max Output Current 417mA
Output Voltage 12V
Voltage - Isolation 1.6kV
Efficiency 87%
Number of Outputs 2
JESD-30 Code R-XDMA-P9
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 31.75mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10W
Power Rating 10W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series JTF (10W)
Published 2008
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Package / Case 24-DIP Module, 9 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
