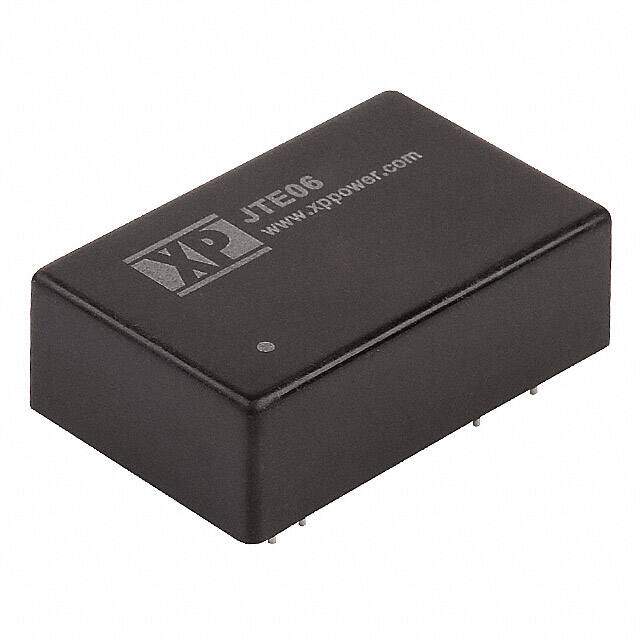

JTE0624S3V3
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JTE0624S3V3Isolated Board Mount DC/DC Converter, 4:1 Input, DIP, Fixed, Through Hole, 6 W, 3.3 V, 1.4 A
PDF
/
Buying Options
Total Price: USD $19.66
Unit Price: USD $19.663
≥1 USD $19.663
≥10 USD $18.55
≥100 USD $17.5
Inventory: 108
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 24-DIP Module, 7 Leads
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Published 2013
Series JTE (6W)
Size / Dimension 1.25Lx0.80W x 0.41 H 31.8mmx20.3mmx10.4mm
Feature OCP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 5W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Terminal Pitch 2.54mm
Depth 31.75mm
JESD-30 Code R-PDMA-P8
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 76%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Output Voltage 3.3V
Max Output Current 1.4A
Voltage - Output 1 3.3V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Output Power 6W
Current - Output 1 1.4A
Max Output Power 6W
Nominal Output Voltage 3.3V
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 9V
Dimensions
Height 10.414mm
Width 20.32mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
