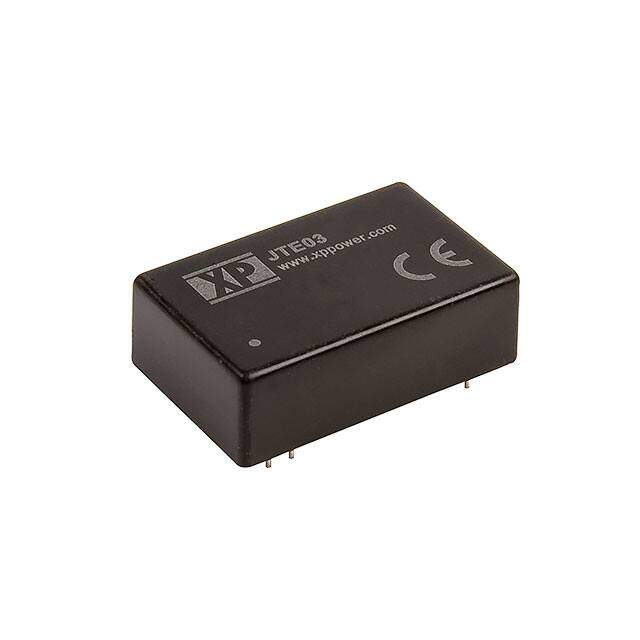

JTE0348D24 image
Favorite
JTE0348D24 image
Favorite

JTE0348D24

XP Power
RoHS
RoHS RoHS compliant
Package 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description XP POWER JTE0348D24 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 18 V, 75 V, 3 W, 24 V
PDF
/
Buying Options
Total Price: USD $17.42
Unit Price: USD $17.4158
≥1 USD $17.4158
≥10 USD $16.43
≥100 USD $15.5
Inventory: 100
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Length 31.75mm
Height 10.16mm

Technical

Min Input Voltage (DC) 18V
Max Input Voltage (DC) 75V
Current - Output 2 63mA
Max Output Power 3W
Current - Output 1 63mA
Voltage - Output 2 -24V
Output Power 3W
Current - Output (Max) 63mA 63mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Output 1 24V
Max Output Current 63mA
Output Voltage 24V
Voltage - Isolation 1.5kV
Efficiency 79%
Number of Outputs 2
JESD-30 Code R-PDMA-P8
Depth 20.32mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series JTE (3W)
Published 2014
Packaging Tube
Operating Temperature -40°C~100°C

Physical

Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Mount PCB, Through Hole

Supply Chain

Factory Lead Time 10 Weeks
