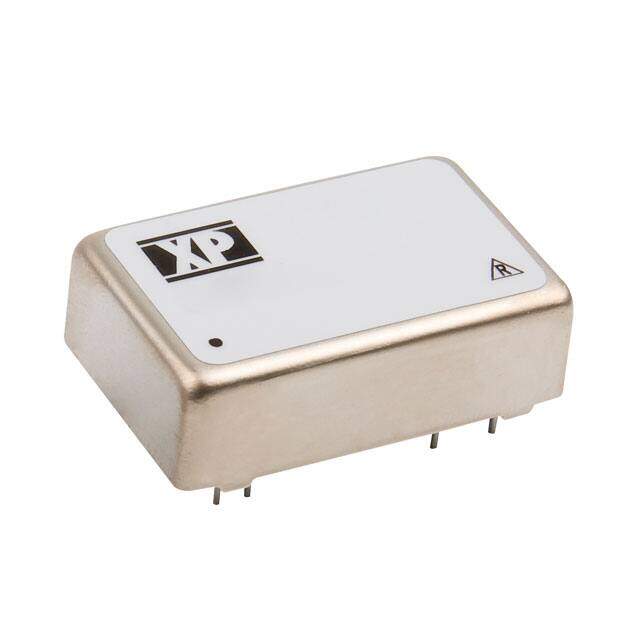

JTC0648D15
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 6W
PDF
/
Buying Options
Total Price: USD $39.33
Unit Price: USD $39.326
≥1 USD $39.326
≥10 USD $37.1
≥100 USD $35
Inventory: 2300
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 10.414mm
Technical
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 72V
Current - Output 2 200mA
Max Output Power 6W
Current - Output 1 200mA
Voltage - Output 2 -15V
Output Power 6W
Output Current 200mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Max Output Current 200mA
Output Voltage 15V
Voltage - Isolation 1.5kV
Efficiency 84%
Qualification Status Not Qualified
Number of Outputs 2
Depth 31.75mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 6W
Power Rating 6W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.41 H 31.8mmx20.3mmx10.4mm
Series JTC (6W)
Published 2009
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
