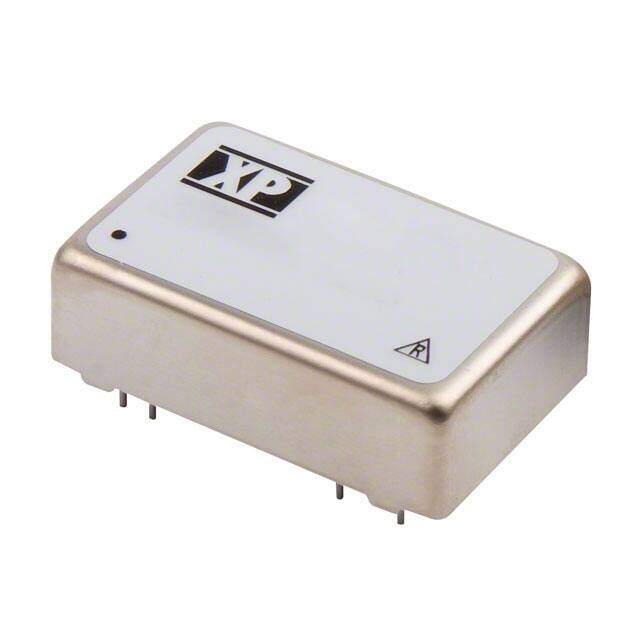

JTC0448D03
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JTC0448D03 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 18 V, 72 V, 4 W, 3.3 V
PDF
/
Buying Options
Total Price: USD $28.54
Unit Price: USD $28.53944
≥1 USD $28.53944
≥10 USD $26.924
≥100 USD $25.4
≥1000 USD $22.60591
≥3000 USD $21.32633
Inventory: 8034
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 10.4mm
Technical
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 72V
Current - Output 2 606mA
Max Output Power 4W
Current - Output 1 606mA
Voltage - Output 2 -3.3V
Output Power 4W
Output Current 606mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Max Output Current 606mA
Output Voltage 3.3V
Voltage - Isolation 1.5kV
Efficiency 78%
Qualification Status Not Qualified
Number of Outputs 2
Depth 31.75mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 4W
Power Rating 4W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.41 H 31.8mmx20.3mmx10.4mm
Series JTC (4W)
Published 2007
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
