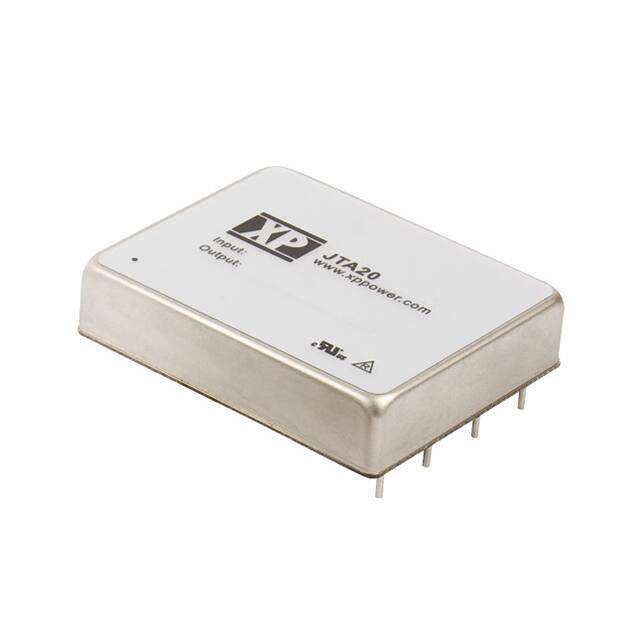

JTA2024D02
RoHS
/
Package 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JTA2024D02 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 9 V, 36 V, 20 W, 12 V
PDF
/
Buying Options
Total Price: USD $123.6
Unit Price: USD $123.596
≥1 USD $123.596
≥10 USD $116.6
≥100 USD $110
≥500 USD $103.77358
≥1000 USD $97.89961
Inventory: 3244
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case 8-DIP Module, 7 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~100°C With Derating
Published 2013
Series JTA (20W)
Size / Dimension 2.00Lx1.60W x 0.45 H 50.8mmx40.6mmx11.4mm
Feature Remote On/Off, OCP, OVP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 20W
Subcategory Other Analog ICs
Power Rating 20W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 50.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 8/7
JESD-30 Code R-XDMA-P7
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 83%
Voltage - Isolation 1.5kV
Output Voltage 12V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Current - Output (Max) 830mA 830mA
Output Current 830mA
Voltage - Output 2 -12V
Current - Output 1 830mA
Max Output Power 20W
Current - Output 2 830mA
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 9V
Dimensions
Height 11.43mm
Width 40.6mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
