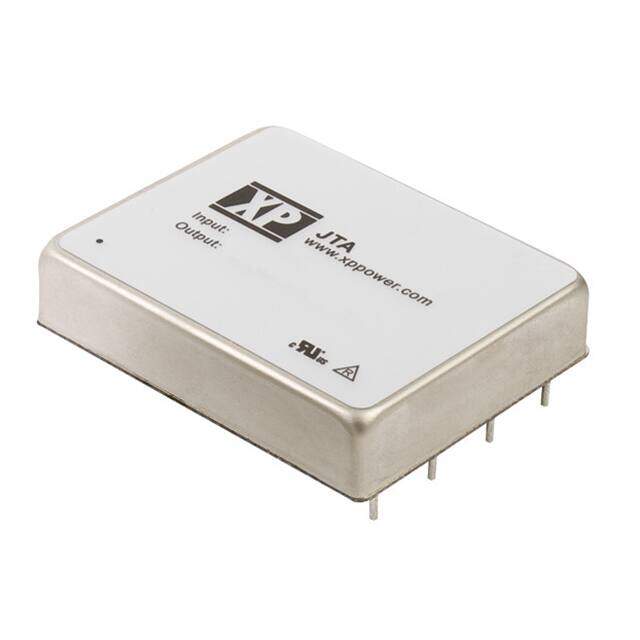

JTA1524S05
RoHS
/
Package 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC-DC, 15W, single output
PDF
/
Buying Options
Total Price: USD $88.8
Unit Price: USD $88.8
≥1 USD $88.8
≥10 USD $83.77358
≥100 USD $79.03168
≥500 USD $74.55819
≥1000 USD $70.33792
Inventory: 1423
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 40.6mm
Length 50.8mm
Technical
Current - Output (Max) 3A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 80%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDMA-P7
Pin Count 8/7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Subcategory Other Analog ICs
Power (Watts) 15W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 2.00Lx1.60W x 0.45 H 50.8mmx40.6mmx11.4mm
Series JTA (15W)
Operating Temperature -40°C~100°C With Derating
Physical
Surface Mount NO
Package / Case 8-DIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
