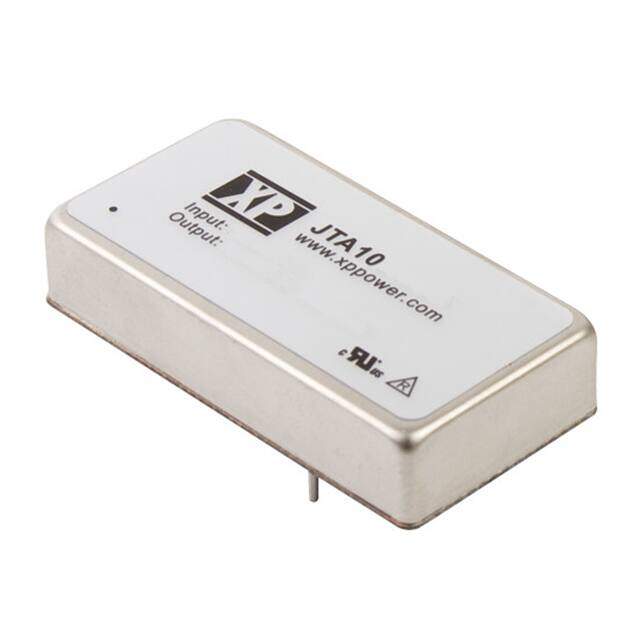

JTA1024D02 image
Favorite
JTA1024D02 image
Favorite

JTA1024D02

XP Power
RoHS
/
Package 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-12V 10W
PDF
/
Buying Options
Total Price: USD $82.68
Unit Price: USD $82.68
≥1 USD $82.68
≥10 USD $78
≥100 USD $73.58491
≥1000 USD $65.4903
≥3000 USD $61.78331
Inventory: 5284
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Length 50.8mm

Technical

Voltage - Output 2 -12V
Current - Output (Max) 420mA 420mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 80%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-XDMA-P5
Pin Count 5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Subcategory Other Analog ICs
Power (Watts) 10W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 2.00Lx1.00W x 0.44 H 50.8mmx25.4mmx11.1mm
Series JTA (10W)
Operating Temperature -40°C~100°C With Derating

Physical

Surface Mount NO
Package / Case 5-DIP Module
Mounting Type Through Hole

Supply Chain

Factory Lead Time 10 Weeks
