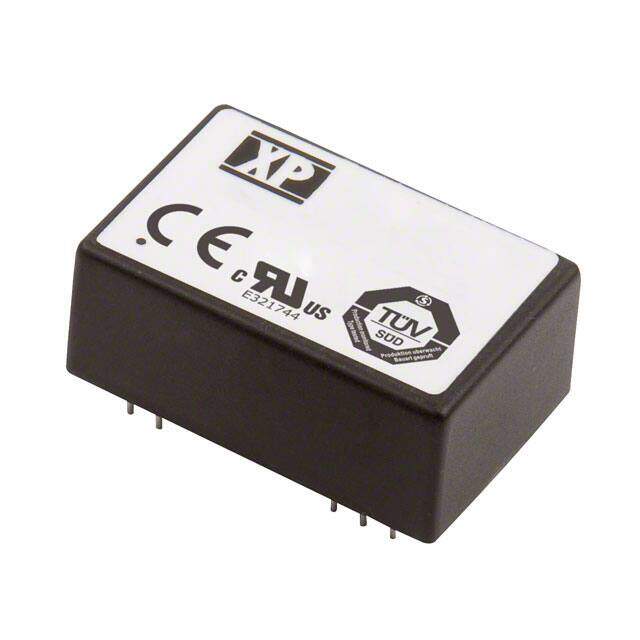

JHM1012D15 image
Favorite
JHM1012D15 image
Favorite

JHM1012D15

XP Power
RoHS
RoHS RoHS compliant
Package 24-DIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description XP POWER JHM1012D15 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 9 V, 18 V, 10 W, 15 V
PDF
/
Buying Options
Total Price: USD $59.89
Unit Price: USD $59.89
≥1 USD $59.89
≥10 USD $56.5
≥100 USD $53.30189
≥500 USD $50.2848
≥1000 USD $47.43849
Inventory: 9228
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Height 12.7mm

Technical

Min Input Voltage (DC) 9V
Max Input Voltage (DC) 18V
Current - Output 2 333mA
Nominal Output Voltage -15V
Max Output Power 10W
Current - Output 1 333mA
Voltage - Output 2 -15V
Output Power 10W
Output Current 333mA
Current - Output (Max) 333mA 333mA
Max Output Current 333mA
Output Voltage 15V
Voltage - Isolation 4kV
Efficiency 88%
Number of Outputs 2
Depth 31.75mm
Max Power Dissipation 10W
Power Rating 10W
Applications Medical
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OCP, OVP, SCP, UVLO
Size / Dimension 1.25Lx0.80W x 0.50 H 31.8mmx20.3mmx12.7mm
Series JHM (10W)
Published 2013
Packaging Tube
Operating Temperature -40°C~80°C

Physical

Package / Case 24-DIP Module, 9 Leads
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 10 Weeks
