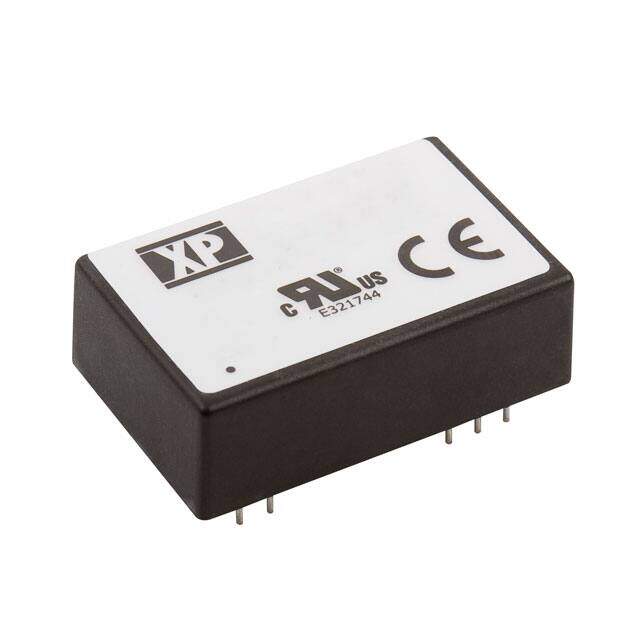

JHM0324D12 image
Favorite
JHM0324D12 image
Favorite

JHM0324D12

XP Power
RoHS
RoHS RoHS compliant
Package 24-DIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description XP POWER JHM0324D12 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 20 V, 30 V, 3 W, 12 V
PDF
/
Buying Options
Total Price: USD $37.1
Unit Price: USD $37.1
≥1 USD $37.1
≥10 USD $35
≥100 USD $33.01887
≥500 USD $31.14988
≥1000 USD $29.38667
Inventory: 1393
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Height 10.4mm

Technical

Min Input Voltage (DC) 20V
Max Input Voltage (DC) 30V
Current - Output 2 125mA
Max Output Power 3W
Current - Output 1 125mA
Voltage - Output 2 -12V
Output Power 3W
Output Current 125mA
Max Output Current 125mA
Output Voltage 12V
Voltage - Isolation 3kV
Efficiency 80%
Number of Outputs 2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 31.75mm
Peak Reflow Temperature (Cel) NOT SPECIFIED
Max Power Dissipation 3W
Power Rating 3W
Applications Medical
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, OVP, SCP, UVLO
Size / Dimension 1.25Lx0.80W x 0.41 H 31.8mmx20.3mmx10.4mm
Series JHM (3W)
Published 2009
Packaging Tube
Operating Temperature -20°C~100°C

Physical

Weight 20g
Package / Case 24-DIP Module, 9 Leads
Mounting Type Through Hole
Mount PCB, Through Hole

Supply Chain

Factory Lead Time 10 Weeks
